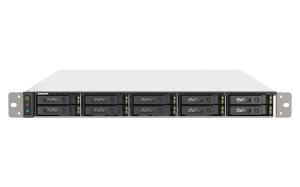

Flash Storage - TS-h1090FU-7302P-256G - 1U - 10x 2.5in U.2 Pci-e NVMe / SATA 6Gbps - EPYC 7302P - 256GB RDIMM DDR4 ECC

Introduction

The TS-h1090FU high-density NVMe all-flash storage is designed for providing extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4 x4 SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Ideal for I/O-intensive and latency-sensitive applications, the TS-h1090FU eliminates productivity bottlenecks in virtualization, modern data centers, multimedia storage, and mission-critical backup/restore tasks-suitable for Tier 2 storage workloads with an ideal low cost-per-GB.

High-density all flash storage
Space-efficient with only 58cm depth compared to 80+cm depth in a 1U rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays.

Optimized SSD performance and lifespan
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.

25GbE future-proof connectivity
Accelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks.

High-speed PCIe Gen 4 slots
Allows installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.

Virtualization applications
Supports virtualization storage, virtual machines with SR-IOV support, and containerized apps.

Flexible storage expansion
Scalable design to grow with your business by connecting QNAP’s economical expansion enclosures.

Storage

Storage drive capacity

0 GB

Total installed storage capacity

0 TB

System drive type

SSD

RAID levels

0, 1, 5, 6, 10, 50, 60, JBOD

Online RAID migration

Yes

Online RAID expansion

Yes

RAID rebuild

Yes

Supported file systems

HFS+, NTFS, exFAT, ext3, ext4

Bad block scan

Yes

Disk roaming

Yes

Supported storage drive interfaces

U.2

Storage drive sizes supported

2.5"

RAID support

Y

Hot-swap drive bays

Y

Storage drives installed

N

Number of storage drives supported

10

Installed storage drive type

N

Supported storage drive types

SSD

Memory

Maximum RAM supported

1 TB

Memory slots

12

Internal memory type

DDR4

Internal memory

256 GB

Memory form factor

RDIMM

ECC

Y

Flash memory

5000 MB

Processor

Processor manufacturer

AMD

Processor family

EPYC

Processor model

7302P

Processor frequency

3 GHz

Processor boost frequency

3.3 GHz

Processor cores

16

Processor threads

32

Network

Ethernet LAN data rates

10,100,1000,2500,25000 Mbit/s

DHCP client

Yes

iSCSI support

Yes

Dynamic DNS (DDNS)

Yes

Ethernet LAN

Y

Jumbo frames support

Y

Wake-on-LAN ready

Y

Ports & interfaces

USB port

Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Ethernet LAN (RJ-45) ports

4

PCI Express x16 (Gen 4.x) slots

2

Concurrent connections

10000

Fiber ports quantity

2

Fiber optic connector

SFP28

Design

Chassis type

Rack (1U)

Cooling type

Active

Number of fans

5 fan(s)

Fan diameter

6 cm

LED indicators

Y

Product colour

Black, Grey

Performance

Type

NAS

Backup function

Y

Buzzer

Y

Device class

Large Enterprise Business

Backup features

Cloud, iSCSI LUN

Multilingual support

Yes

Snapshot

Yes

Access Control List (ACL)

Yes

Reset button

Yes

On/off switch

Yes

Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

System log

Yes

Disk scan

Yes

S.M.A.R.T. support

Yes

Software

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operating system installed

QuTS hero

Operating system version

ZFS-based

Power

Power supply unit (PSU) capacity

550 W

Number of power supply units

2

Power consumption (typical)

157.97 W

AC input voltage

100 - 240 V

Redundant power supply (RPS) support

Yes

Power supply location

Built-in

Weight & dimensions

Package width

561 mm

Package depth

763 mm

Package height

170 mm

Width

430 mm

Depth

580 mm

Height

44 mm

Weight

10.4 kg

Package weight

13.5 kg

Packaging content

Package type

Box

Cables included

AC, LAN (RJ-45)

Power cables quantity

1

Rack mount kit

Yes

Number of screws

40

Drive tray key included

Yes

Other features

Warranty period

5 year(s)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

-20 - 70 °C
