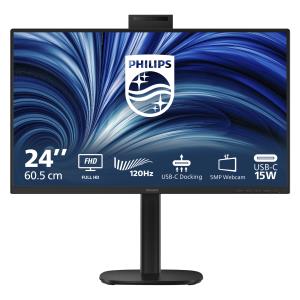

Desktop Monitor With USB-c - 24b2u3301h - 24in - 1920 X 1200 (wuxga)

Introduction

Speed through daily tasks in comfort with this monitor's SoftBlue technology, Full HD resolution and 120 Hz refresh rate. Not to mention, SmartErgoBase adds an ergonomic touch to the monitor's feature list.

Display

Display diagonal

60.5 cm (23.8")

Display resolution

1920 x 1080 pixels

HD type

Full HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

IPS

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

350 cd/m²

Response time

4 ms

Response time measurement type

GTG (Gray to Gray)

Anti-glare screen

Yes

Screen shape

Flat

Contrast ratio (typical)

1500:1

Contrast ratio (dynamic)

50000000:1

Dynamic contrast ratio marketing name

SmartContrast

Maximum refresh rate

120 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Pixel pitch

0.2745 x 0.2745 mm

Pixel density

93 ppi

Horizontal scan range

30 - 140 kHz

Vertical scan range

48 - 120 Hz

Viewable size, horizontal

52.7 cm

Viewable size, vertical

29.6 cm

Sync-on-green (SOG)

Yes

Display diagonal (metric)

60.47 cm

DDC/CI

Yes

Haze rate

25%

Surface hardness

3H

Colour depth

8 bit

Colour gamut standard

sRGB, NTSC

sRGB coverage (typical)

110%

NTSC coverage (typical)

96%

Display sRGB

Yes

Display panel size

23.8 inch/60.47 cm

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

VESA Adaptive Sync support

Yes

Component video sync

Separate Sync, Sync-on-green (SOG)

Flicker-free technology

Yes

Multimedia

Number of speakers

2

RMS rated power

4 W

Built-in speaker(s)

Yes

Megapixel (approx.)

5 MP

Built-in microphone

Yes

Built-in camera

Yes

Design

Market positioning

Business

Product colour

Black

Front bezel colour

Black

Feet colour

Black

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-C

Number of upstream ports

1

Number of USB Type-C upstream ports quantity

1

USB Type-A downstream ports quantity

4

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

90 W

HDMI

Yes

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

DisplayPort out quantity

1

DisplayPort version

1.4

Audio output

Yes

HDCP

Yes

HDCP version

1.4

Network

Ethernet LAN

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Adjustable height (max)

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-180 - 180°

Tilt adjustment

Yes

Tilt angle range

-5 - 30°

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian

Number of OSD languages

21

Plug and Play

Yes

LED indicators

Operation, Stand-by

Power

Energy efficiency class (SDR)

C

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

14 kWh

Power consumption (typical)

14.36 W

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

Power consumption (PowerSave)

11 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Operating altitude

0 - 3658 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width (with stand)

542 mm

Depth (with stand)

228 mm

Height (with stand)

499 mm

Weight (with stand)

5.74 kg

Width (without stand)

542 mm

Depth (without stand)

48 mm

Height (without stand)

320 mm

Weight (without stand)

4.07 kg

Packaging data

Package width

615 mm

Package depth

139 mm

Package height

420 mm

Package weight

7.94 kg

Packaging content

Stand included

Yes

Cables included

DisplayPort, HDMI, USB Type-C to USB Type-C, Power

Manual

Yes

Bundled software

SmartControl

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT

Doesn't contain

PVC/BFR

Other features

HBR3 support

Yes

Compatible operating systems

Mac OS; Windows 11/10

Exterior finish type

Textured

Monitor sync input signal

Separate Sync; Sync on Green

User controls

SmartImage; Input; Brightness; Menu; Power On/Off

Picture enhancement

SmartImage

Regulatory Approvals

ETL; CEC; CB; TUV/GS; TUV Ergo; TCO Certified; TCO Certified Edge; EAC; EAEU RoHS; MEPS; CE Mark; UKCA; EMF; FCC; ICES-003; TÜV Rheinland Low Blue Light (Hardware Solution); eyesafe® CERTIFIED 2.0

SoftBlue

Yes

Adaptive synchronisation

Yes

EasyRead mode

Yes

Compliance certificates

RoHS

Mean time between failures (MTBF)

70000 h

Recycling data

Packaging recyclability rate

100%

Product post-consumer recycled plastic

85%
