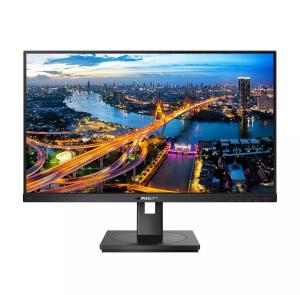

Desktop USB-c Monitor - 243b1 - 24in IPS - Fhd 1920x1080

Introduction

The Philips USB-C monitor replaces cable clutter. View FHD image and recharge a laptop, all at the same time with a single USB-C cable. Features like Daisy chain for multi-display setup, Eye comfort with TUV certified to reduce eye fatigue

Display

Anti-glare screen

Yes

Dynamic contrast ratio marketing name

SmartContrast

Display diagonal (metric)

60.5 cm

Display sRGB

Yes

Haze rate

25%

Surface hardness

3H

LED backlight

Yes

Display panel size

23.8 inch/60.5 cm

Touchscreen

No

Display diagonal

60.5 cm (23.8")

Display brightness (typical)

250 cd/m²

Display resolution

1920 x 1080 pixels

Native aspect ratio

16:9

Response time

4 ms

HD type

Full HD

Display technology

LED

Backlight type

W-LED

Screen shape

Flat

Supported graphics resolutions

640 x 480 (VGA),720 x 400,832 x 624,1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)

Aspect ratio

16:9

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

50000000:1

Maximum refresh rate

75 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.78 million colours

3D

N

Panel type

IPS

Pixel pitch

0.2745 x 0.2745 mm

Pixel density

93 ppi

Horizontal scan range

30 - 85 kHz

Vertical scan range

48 - 75 Hz

Viewable size, horizontal

52.7 cm

Viewable size, vertical

29.6 cm

Digital horizontal frequency

30 - 85 kHz

Digital vertical frequency

48 - 75 Hz

Separate H/V sync

Y

DDC/CI

Y

Colour space supported

NTSC,sRGB

RGB colour space

sRGB

Colour gamut

91%

sRGB coverage (typical)

107%

NTSC coverage (typical)

91%

Ports & interfaces

USB Power Delivery

Yes

HDCP version

1.4

I/O ports

USB 3.2 Gen 2 x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)

DisplayPort out quantity

1

DisplayPort output

Yes

Built-in USB hub

Y

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of upstream ports

1

Number of USB Type-C upstream ports quantity

1

USB Type-A downstream ports quantity

4

USB Type-C DisplayPort Alternate Mode

Y

USB Power Delivery up to

90 W

DVI port

N

HDMI

Y

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

DisplayPort version

1.4

Audio input

Y

Audio output

Y

Headphone out

Y

Headphone outputs

1

HDCP

Y

Power

Power consumption (PowerSave)

12.6 W

Power supply type

Internal

Power consumption (off)

0 W

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

18 kWh

Power consumption (typical)

12.6 W

Power consumption (standby)

0.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Sustainability

Doesn't contain

PVC/BFR, Mercury

European Product Registry for Energy Labelling (EPREL) code

388593

Sustainability certificates

RoHS, ENERGY STAR

Other features

Exterior finish type

Textured

Picture enhancement

SmartImage

Regulatory Approvals

CE Mark; FCC Class B; SEMKO; CU-EAC; EAEU RoHS; TUV/GS; TUV Ergo; UKRAINIAN; ICES-003; CB; TUV Eye Comfort certified

Light sensor

Yes

LowBlue mode

Yes

Wake-on-LAN

Yes

Compatible operating systems

Mac OS X; Windows 10/8.1/8/7

Monitor sync input signal

Separate Sync

User controls

SmartImage; Input; PowerSensor; Menu; Power On/Off

On/off switch

Y

USB Power Delivery revision

3.0

TV tuner integrated

N

Manual

Y

Recyclable packaging material

100%

EasyRead mode

Y

Mean time between failures (MTBF)

70000 h

Ethernet LAN

Y

Ethernet LAN data rates

1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

Technical details

Compliance certificates

RoHS, WEEE

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Component video sync

Separate sync

Flicker-free technology

Y

Low Blue Light technology

Y

HBR3 support

Y

Multimedia

Built-in speaker(s)

Y

Number of speakers

2

RMS rated power

2 W

Built-in camera

N

Design

Market positioning

Home

Product colour

Black

Front bezel colour

Black

Feet colour

Black

Heavy metals free

Hg (mercury)

Certification

CE Mark, FCC Class B, SEMKO, CU-EAC, EAEU RoHS, TUV/GS, TUV Ergo, UKRAINIAN, ICES-003, CB, TUV Eye Comfort certified

Logistics data

Harmonized System (HS) code

85285210

Ergonomics

Panel mounting interface

100 x 100 mm

Cable lock slot

Y

Cable lock slot type

Kensington

VESA mounting

Y

Height adjustment

Y

Height adjustment

15 cm

Pivot

Y

Pivot angle

90 - 90°

Swivelling

Y

Swivel angle range

-180 - 180°

Tiltable

Y

Tilt angle range

-5 - 35°

On Screen Display (OSD)

Y

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Number of OSD languages

16

Plug and Play

Y

LED indicators

Operation, Stand-by

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Operating altitude

0 - 3658 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width (with stand)

540 mm

Depth (with stand)

205 mm

Height (with stand)

501 mm

Weight (with stand)

4.98 kg

Width (without stand)

54 cm

Depth (without stand)

5.1 cm

Height (without stand)

32.3 cm

Weight (without stand)

3.4 kg

Packaging data

Stand included

Y

Cables included

AC, DisplayPort, HDMI, USB

Package width

600 mm

Package depth

198 mm

Package height

465 mm

Package weight

7.04 kg

Bundled software

SmartControl

Recycling data

Recyclable material

100%

Post-consumer recycled plastic

85%
