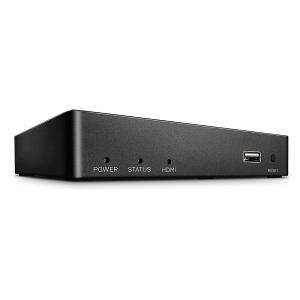

4k KVM Over Ip Extender Transmitter

4k KVM Over Ip Extender Transmitter

£157.09
£188.51
Part Number: 38264
Language: NS
Real time Stock Check

Product Details

Introduction

Extends HDMI 4K30, USB HID and IR Over an IP network_x000D_
Supports point to point and point to multipoint installation up to 150m (492.12ft)_x000D_
HDMI 1.4 & HDCP 1.4 compliant_x000D_
Requires a Gigabit Ethernet (1000BaseT) compliant network for multipoint installation_x000D_
2 year warranty_x000D_
_x000D_
The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This transmitter unit must be connected to one or more receiver units (No. 38265 – not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It's also possible to set up a distributed control system (One to Many configuration)  which allows a single device connected to a Transmitter to be controlled by several consoles each connected to a receiver unit (No. 38265 - not included) via a dedicated Ethernet switch or VPN._x000D_
_x000D_
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities._x000D_
_x000D_

Features

Type

Transmitter

Connectivity technology

Wired

Maximum transfer distance

150 m

Cable types supported

Cat5e,Cat6

Maximum digital resolution

3840 x 2160 pixels

Product colour

Black

Material

Metal

Transmitter

Transmitter video port type

HDMI

RJ-45 ports quantity (transmitter)

1

Power

Power plug type

Type A

AC input voltage

5 V

Input current

2 A

Operational conditions

Storage temperature (T-T)

-10 - 75 °C

Technical details

Dimensions (WxDxH)

124 x 85 x 24 mm

Weight

200 g
