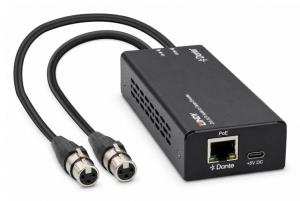

2ch Xlr Audio To Dante Encoder

Introduction

Bring Analogue XLR Audio into Dante® Networks
The Lindy 2ch XLR Audio to Dante® Encoder provides a simple and reliable way to integrate analogue XLR audio sources into Dante® networked audio systems, making it ideal for professional AV, live sound, broadcast and installed audio environments.

Seamless Two Channel XLR Conversion for Dante® Workflows
Designed to bridge traditional analogue audio equipment with modern digital audio networks, this compact encoder converts two XLR input channels into low latency, uncompressed Dante® audio. With support for PoE, USB-C power and Dante® Controller software, it offers a flexible and scalable solution for integrating mixers, DSPs, DI boxes, compressors and wireless receivers into professional networked audio systems.

Integrates analogue equipment into Dante® systems
Converts two channels of analogue XLR audio into Dante® digital audio, allowing existing mixers, DSPs, DI boxes and wireless receivers to be used within modern networked environments.

Reduces cabling complexity
By carrying audio over standard network infrastructure, the encoder can replace longer analogue or multicore cable runs with a single network cable.

Supports professional audio quality
With 24-bit audio and sample rates up to 96kHz, the encoder supports clean, accurate signal conversion for demanding AV and audio workflows.

Flexible power for easier installation
Power can be supplied via USB-C or 802.3af PoE, helping installers deploy the unit in racks, behind equipment or in temporary production setups.

Scalable routing and system control
Support for Dante® Controller software allows users to configure routing and manage audio channels across Dante® networks as systems expand.

Built for professional environments
The compact metal enclosure and included mounting ears make the encoder suitable for live events, corporate venues, broadcast systems and fixed AV installations.

Typical Applications
The 2ch XLR Audio to Dante® Encoder is ideal for connecting analogue audio sources such as mixers, DSPs, DI boxes, compressors and wireless microphone receivers to Dante® enabled networks. It is well suited to live sound systems, broadcast environments, corporate AV installations, education spaces, houses of worship and venues where reliable long-distance audio distribution is required.

Inputs

USB connector type

USB Type-C

XLR input

1

Outputs

RJ-45 ports quantity

1

Technical details

Maximum transfer distance

100 m

Maximum data transfer rate

100 Mbit/s

Product colour

Black

Housing material

Metal

Warranty period

3 year(s)

Compliance certificates

CE, UKCA, Federal Communications Commission (FCC), REACH, RoHS

Power over Ethernet (PoE)

Yes

Power

Power consumption (max)

2.35 W

Weight & dimensions

Width

127 mm

Depth

53 mm

Height

26 mm

Weight

290 g

Operational conditions

Operating temperature (T-T)

-5 - 55 °C

Storage temperature (T-T)

-25 - 70 °C

Packaging data

Quantity

1

Manual

Yes

Package weight

340 g

Package type

Box
