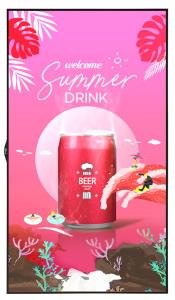

Digital Signage - 49xs4p-b - 49in - 1920x1080 (fhd) - 8ms - IPS (16:9) - Black

Introduction

Attract Passing Customers with a Bright Display Presented Through a Window

World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0? to 40?.

Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

Upgraded Quite Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.

Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

Display

Panel type

IPS

LED backlight

Yes

LED backlighting type

Direct-LED

Display diagonal

124.5 cm (49")

Display technology

LED

Display resolution

1920 x 1080 pixels

Display brightness

4000 cd/m²

HD type

Full HD

Touchscreen

No

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

1300:1

Contrast ratio (dynamic)

500000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Panel life

50000 h

Native refresh rate

60 Hz

Haze rate

3%

Ports & interfaces

HDMI ports quantity

2

HDMI input ports quantity

2

DVI-D ports quantity

1

DisplayPorts quantity

2

DisplayPorts in

1

DisplayPorts out

1

USB port

Yes

USB ports quantity

1

USB version

2.0

USB connector type

USB Type-A

Ethernet LAN (RJ-45) ports

1

Audio (L/R) out

1

RS-232C

Yes

Infrared data port

Yes

Remote (IR) input

1

Remote (IR) output

1

Audio

Built-in speaker(s)

Yes

RMS rated power

20 W

Design

Product design

Digital signage flat panel

Placement supported

Outdoor

Orientation

Horizontal/Vertical

Product colour

Black

Screen shape

Flat

VESA mounting

Yes

Panel mounting interface

600 x 400 mm

Bezel width (bottom)

9 mm

Bezel width (side)

6.5 mm

Bezel width (top)

9 mm

Bezel colour

Black

Performance

Purpose

Retail

On Screen Display (OSD)

Yes

Number of OSD languages

22

On Screen Display (OSD) languages

Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish

Operating hours (hours/days)

24/7

HDCP

Yes

HDCP version

1.4

Power

Power consumption (typical)

345 W

Power consumption (off)

0.5 W

Power consumption (max)

375 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Heat dissipation

1177 BTU/h

Computer system

Computer system

Yes

Computer system type

System on Chip (SoC)

Internal memory

16 GB

Operating system installed

WebOS

Operating system version

6.0

Weight & dimensions

Display width

1092.7 mm

Display depth

83.5 mm

Display height

626.4 mm

Display weight

20.8 kg

Packaging data

Package width

1181 mm

Package depth

725 mm

Package height

212 mm

Package weight

25.3 kg

Packaging content

Remote control included

Yes

Cables included

AC, HDMI

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 80%

Network

Ethernet LAN

Yes

Features

Suitable for outdoor use

Yes

Heat dissipation (max)

1279 BTU/h

Technical details

Introduction year

24

Other features

Manual

Yes
