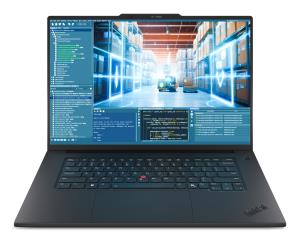

ThinkPad T1g Gen 8 - 16in - Core Ultra 9 285H - 64GB Ram - 2TB SSD - RTX 5070 8GB - Win11 Pro - 3Y Premier - Qwerty UK

Introduction

A reliable, AI-ready laptop built for creatives and power users handling demanding tasks.- 16" high-performance laptop with AI efficiency & Intel® Core™ Ultra (Series 2) processors
- Super-fast computing & visual rendering via NVIDIA® GeForce RTX® graphics
- Enterprise-grade performance, security & manageability with Intel vPro® option

Design

Product type

Laptop

Product colour

Black

Form factor

Clamshell

Housing material

Aluminium

Display back cover material

Aluminium

Stylus pen support

No

Display

Display diagonal

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touchscreen

No

HD type

WUXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

16:10

Anti-glare screen

Yes

Display brightness

500 cd/m²

RGB colour space

sRGB

Colour gamut

100%

Low Blue Light technology

Yes

Maximum refresh rate

60 Hz

Eyesafe technology

Yes

Processor

Processor generation

Intel Core Ultra (Series 2)

Processor boost frequency

5.4 GHz

Performance cores

6

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

5.4 GHz

Efficient-core Max Turbo Frequency

4.5 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

2.9 GHz

Efficient-core base frequency

2.7 GHz

Low Power Efficient-core Base Frequency

1000 MHz

Processor socket

BGA 2049

Processor base power

45 W

Maximum turbo power

115 W

Processor manufacturer

Intel

Processor family

Intel Core Ultra 9

Processor model

285H

Processor cores

16

Processor threads

16

Processor cache

24 MB

Processor cache type

Smart Cache

Neural processor unit (NPU)

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

99 TOPs

GPU performance up to

77 TOPs

Neural processor unit (NPU)

Intel AI Boost

NPU performance up to

13 TOPs

Graphics

On-board graphics card family

Intel Arc Graphics

Graphics card

Arc Graphics 140T

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA® GeForce RTX™ 5070 Laptop GPU

Discrete graphics card memory

8 GB

Discrete graphics memory type

GDDR7

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

Yes

On-board graphics card model

Intel Arc 140T

Memory

Internal memory

64 GB

Internal memory type

LPDDR5x-SDRAM

Memory clock speed

7467 MHz

Memory form factor

LPCAMM2

Maximum internal memory

64 GB

Memory channels

Dual-channel

Storage

Total storage capacity

2 TB

Storage media

SSD

Total SSDs capacity

2 TB

Number of SSDs installed

1

SSD capacity

2 TB

SSD interface

PCI Express 5.0

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Self-Encrypting Drive (SED)

Yes

Optical drive type

No

Card reader integrated

Yes

Compatible memory cards

SD

Audio

Audio chip

Cirrus Logic CS42L43

Audio system

Dolby Atmos

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera

Yes

Front camera resolution (numeric)

5 MP

Infrared (IR) camera

Yes

Privacy camera

Yes

Privacy type

Privacy shutter

Network

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Mobile network connection

No

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 7 BE201

WLAN controller manufacturer

Intel

Ethernet LAN

No

Bluetooth

Yes

Bluetooth version

5.4

Near Field Communication (NFC)

No

WWAN

Not installed

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

1

Thunderbolt 5 ports quantity

2

Intel® Thunderbolt 4

Yes

Intel® Thunderbolt 5

Yes

Combo headphone/mic port

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge

Yes

Performance

Motherboard chipset

Intel SoC

Keyboard

Pointing device

ThinkPad UltraNav

Numeric keypad

No

Keyboard backlit

Yes

Keyboard language

UK English

Software

Operating system language

US English, ENG-UK

Operating system installed

Windows 11 Pro

Bundled software

Intel Connectivity Performance Suite + Lenovo AI Now

Processor special features

Intel® Smart Cache

Yes

Battery

Battery capacity

90 Wh

Power

AC adapter power

140 W

USB Type-C charging port

Yes

USB Type-C required charging power (min)

140 W

USB Type-C required charging power (max)

140 W

USB Power Delivery (USB PD)

Yes

Security

Cable lock slot

Yes

Cable lock slot type

Kensington, Nano

Fingerprint reader

Yes

Smart card reader

No

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Certificates

Certification

ENERGY STAR,TCO,TCO10,EPEAT Gold,RoHS

Weight & dimensions

Width

354.3 mm

Depth

241 mm

Height (front)

9.9 mm

Height (rear)

1.58 cm

Weight

1.84 kg

Packaging content

AC adapter included

Yes

Stylus pen

No
