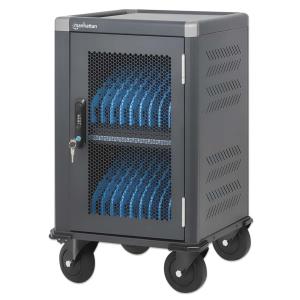

Charging Cart - 20-Port USB-C - 30W per Port

Introduction

Charging, storing, and protecting portable devices is easy with this reliable Manhattan 20-Port USB-C Charging Cart. It's the ideal solution for tablets, phones, Chromebooks, MacBook Air/Neo and other devices up to 14 inch in schools, restaurants, gyms, doctor's offices, universities, hotels, offices, and more, so you can efficiently assist your students, guests, patients, customers, and patrons.

Features

• Safely stores and charges tablets, iPads, Chromebooks, MacBook Airs, MacBook Neos, phones, and other devices up to 14"
• USB-C Power Delivery fast-charging ports with up to 30 W per port; charging cables included, no AC adapters or wall chargers required
• Protection against short circuit, overload, overvoltage, and overtemperature
• Sturdy, secure powder-coated metal housing with perforated steel front and rear doors
• Door locks on front and back; lockable with included keys or four-digit combination
• 20 spacious device slots, 330 (D) x 25 (W) x 235 (H) mm each, with cable management built into the dividers
• 20 USB-C to USB-C charging cables included
• Status LEDs indicate charging progress with red for charging and green for fully charged
• PVC pads on each shelf prevent slipping and protect your devices from scratches
• Side door with key lock for access to power management system, fans, and fuse switch
• Integrated fans and ventilation slots for maximum airflow and cooling efficiency
• Four heavy-duty casters, two with brakes
• Two-pole on/off switch
• Round edges to avoid injuries in busy environments
• Two power cables included with C13 to EU and to UK plugs, 2 m
• Earthing kit included to protect equipment from external electrical surges
• For indoor use only

Specifications

Standards and Certifications

• CE
• RoHS
• REACH
• UKCA
• PD 3.0

Electrical

• AC input: 220.0 - 240.0 V; 10.0 A; 50 - 60 Hz; IEC 60320 C14
• Rated voltage: 230.0 V
• Maximum load: 640.0 W for up to 30 W per port
• Built-in PSUs: 2 x 320.0 W
• Voltage/current/power settings
• USB-C PD output (30.0 W max.per port):
  • 5.0 V / 3.0 A / 15.0 W
  • 9.0 V / 3.0 A / 27.0 W
  • 12.0 V / 2.5 A / 30.0 W
  • 15.0 V / 2.0 A / 30.0 W
  • 20.0 V / 1.5 A / 30.0 W

Fan specifications

• Two fans
• Air flow: 102 m³/h (60 cfm) per fan
• Noise level: 38 to 40 db (A)
• Rated power: 8.0 W
• Rated speed: 1900 rpm +/-5%
• Static pressure: 5.4 mmH2O
• Unit weight: 450 g
• Rotation: counter-clockwise
• MTBF (at 25°C): 30,000 hours
• Temperature range: -20 - 80°C
• Operating voltage: 220.0 - 240.0 V, 50 - 60 Hz, 0.06 A
• Operating humidity: 20 - 80%

Protection Characteristics

• Short-circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overload (OLP) with auto-recovery mode
• Overtemperature (OTP) with auto-recovery mode

Physical

• Materials: cold-rolled, powder-coated steel, flame retardant ABS plastic
• Perforated steel front and rear door
• External unit dimensions including casters (D x W x H): 490 x 432 x 752 mm
• External unit dimensions excluding casters (D x W x H): 490 x 432 x 622 mm
• Internal device bay dimensions (D x W x H) (20): 330 x 25 x 235 mm
• Device size compatibility: Suitable for most 14" devices; please check your device's dimensions before use
• AC power cable length: 2 m
• Cable type: H05VV-F 3G 1.5 mm²
• Four removable heavy-duty casters, two with brakes
• Net weight: 39 kg
• Gross weight: 54 kg
• Caster details
  • Wheel materials: TPR
  • Wheel diameter: 100 mm
  • Caster width: 26 mm
  • Caster height: 128 mm
  • Plate size: 92.5 x 62.5 mm
  • Hole spacing: 75 x 45 mm
  • Bracket thickness: up to 3 mm
  • Load capacity: 100 kg
