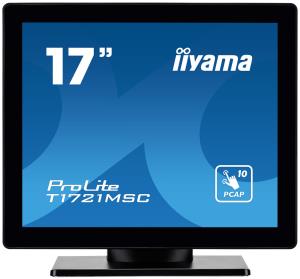

Touch Monitor - ProLite T1721MSC-B2 - 17in - 1280x1024 (SXGA) - Black

Performance

Low Blue Light technology

Yes

NVIDIA G-SYNC

No

AMD FreeSync

No

Design

Front bezel colour

Black

Market positioning

Business

Product colour

Black

Feet colour

Black

Glass thickness

1.5 mm

Ports & interfaces

USB Touch port

Yes

HDCP

Yes

Built-in USB hub

Yes

VGA (D-Sub) ports quantity

1

HDMI

Yes

HDMI ports quantity

1

Headphone out

Yes

Display

Display diagonal

43.2 cm (17")

Display resolution

1280 x 1024 pixels

HD type

SXGA

Native aspect ratio

5:4

Display technology

LED

Panel type

TN

Backlight type

LED

Touchscreen

Yes

Touchscreen type

Tabletop

Touchscreen technology

Projected capacitive system

Touch technology

Multi-touch

Number of simultaneous touchpoints

10

Display brightness (peak)

230 cd/m²

Display brightness (typical)

250 cd/m²

Response time

5 ms

Display surface

Matt

Screen shape

Flat

Contrast ratio (typical)

1000:1

Viewing angle, horizontal

170°

Viewing angle, vertical

160°

Display number of colours

16.7 million colours

Pixel pitch

0.264 x 0.264 mm

Horizontal scan range

31.4 - 80 kHz

Viewable size, horizontal

33.8 cm

Viewable size, vertical

27.1 cm

Display diagonal (metric)

43 cm

DDC/CI

Yes

Surface hardness

7H

Display brightness

230 cd/m²

Multimedia

Number of speakers

2

RMS rated power

4 W

Built-in speaker(s)

Yes

Built-in camera

No

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable management

Yes

Tilt adjustment

Yes

Tilt angle range

10 - 70°

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

German, English, Spanish, French, Italian, Japanese, Russian

Number of OSD languages

8

Power

Energy efficiency class (SDR)

E

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

13 kWh

Power consumption (typical)

20 W

Power consumption (standby)

1.5 W

Power consumption (off)

0.3 W

AC adapter output voltage

12 V

Power supply type

External

Energy efficiency scale

A to G

European Product Registry for Energy Labelling (EPREL) code

1385536

Weight & dimensions

Width (with stand)

392.5 mm

Depth (with stand)

198 mm

Height (with stand)

364 mm

Weight (with stand)

4.4 kg

Packaging data

Package width

537 mm

Package depth

172 mm

Package height

500 mm

Package weight

5.8 kg

Packaging content

Stand included

Yes

Cables included

HDMI, Power, USB

Power adapter included

Yes

Quick start guide

Yes

Manual

Yes

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ErP

Other features

Compatible operating systems

All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

AC adapter included

Yes

Brightness

230 cd/m²

Packaging content

AC adapter, mylar sheet (for VESA mount)

Active display area (W x H)

338 x 270.5 mm

USB ports quantity

1

Weight

4.4 kg

Height

364 mm

User controls

picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information

Touch method

stylus, finger, glove (latex)

Width

392.5 mm

Depth

198 mm

Control panel

Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power

International Protection (IP) code

IPX3

Compliance certificates

CE, EAC, REACH, RoHS, UKCA, WEEE, cUL

Certification

CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA

Mean time between failures (MTBF)

50000 h
