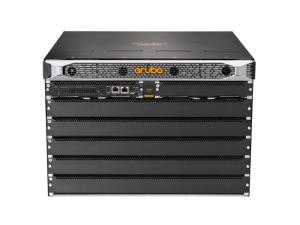

Aruba 6405 Switch, (5) open I/O module slots

Introduction

The Aruba CX 6400 Switch Series is a modern, flexible, and intelligent family of AOS-CX modular switches ideal for enterprise campus and data center deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6400 extends industry-leading monitoring and troubleshooting capabilities across the network.
Powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Switching Extension (VSX) brings high availability and enables non-disruptive fast upgrades with simplified management. Support of Aruba NetEdit and the Aruba CX Mobile App verify configurations are flawless and easy to deploy. This series offers 5 and 10 slot compact chassis with a choice of line rate interfaces including 25GbE, 100GbE, and full density 60W PoE with HPE Smart Rate multi-gigabit Ethernet ideal for access, aggregation and core deployments.

Management features

Switch type

Managed

Switch type

Managed

Network

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

10G support

Yes

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

10G support

Y

Power

Power supply note

Power supply units are not included; order separately. Supports four modular front-serviceable power supplies with removable rear-serviceable power cord inlet adapters. Supported power supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.

Power source

AC

Power supply included

Yes

Power consumption note

R0X35A PSU: 1800W at 200–240 VAC, 1100W at 110–127 VAC R0X36A PSU: 3000W at 200–240 VAC, 1500W at 110–127 VAC

Power source

AC

Power supply included

Y

AC input voltage

110 - 240 V

Design

Stackable

Yes

Rack mounting

Yes

Form factor

7U

Rack mounting

Y

Form factor

7U

Performance

Flash memory

32000 MB

Processor model

ARM Cortex-A72

Built-in processor

Y

Processor model

ARM Cortex-A72

Processor frequency

1800 MHz

Memory type

DDR4-SDRAM

Internal memory

16384 MB

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Weight & dimensions

Height

448.5 mm

Width

528.8 mm

Depth

442.6 mm

Height

448.5 mm

Weight

53.5 kg

Data transmission

Throughput

20000 Mpps

Switching capacity

28000 Gbit/s

Other features

Latency

1G: 5.32 µSec 10G: 1.48 µSec 25G: 2.78 µSec 40G: 1.31 µSec 100G: 1.42 µSec

Memory and processor

CPU Management Module: Quad-core Arm Cortex™ A72 at 1.8 GHz Line Cards: Dual-core Arm Cortex™ A72 at 1.8 GHz (R0X38A-R0X45A and R0X38B-R0X40B) Line Cards: Quad-core Arm Cortex™ A72 at 1.8 GHz (R0X38C-R0X45C, S0E48A, S1T83A) Memory and flash Management Module: 16 GB DDR4 ECC memory: 32 GB eMMC Flash memory Line Cards: 4 GB DDR4 memory (R0X38A-R0X45A and R0X38B-R0X40B) Line Cards: 8 GB DDR4 memory (R0X38C-R0X45C, S0E48A, S1T83A)

I/O ports

High speed, non-blocking 1/10/25/40/50/100GbE ports 10 I/O module slots maximum depending on model

Performance management

1 x RJ-45 console port 1 x USB-C console port 1 x OOBM port 1 x USB Type-A host port HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking CX Mobile App Command-line interface SNMP v2c/v3 RMON

Weight (imperial)

53.6 kg (118.2 lbs)

Fan

Two field replaceable system fan trays

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y
