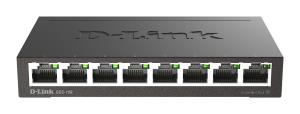

Desktop Switch Gigabit Dgs-108 8-port 10/100/1000 Metal Housing

Introduction

Effortless Gigabit Networking
With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-108 8 Port Gigabit Switch is ideal for transferring files quickly. Featuring easy access front Ethernet ports with two color LED indicators per port to quickly distinguish link status. The switch supports IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch incorporates a Kensington Security Slot on the rear panel allowing users to securely fasten the unit to a table or desk.

Think Green
The DGS-108 is a plug-and-play networking switch that offers D-Link's Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Working together these features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.

Environmentally Friendly
The DGS-108 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.

Network

10G support

Yes

Networking standards

IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x

Copper ethernet cabling technology

1000BASE-T,100BASE-TX,10BASE-T

Full duplex

Y

Flow control support

Y

Auto MDI/MDI-X

Y

Design

Form factor

Desktop

Rack mounting

N

Product colour

Black

Housing material

Metal

LED indicators

Link, Power, Y

Certification

FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS

Power

Power source

AC

Input current

1 A

Input voltage

5 V

Power consumption (typical)

4.5 W

Weight & dimensions

Width

138.7 mm

Depth

85 mm

Height

22.4 mm

Weight

440 g

Packaging data

Included power plug types

EU

Technical details

Shipping (inner) case height

44.3 cm

Shipping (inner) case width

26 cm

Shipping (inner) case length

37 cm

Shipping (inner) case net weight

7.1 kg

Products per shipping (inner) case

10 pc(s)

Pallet gross weight (air)

398.9 kg

Master (outer) cases per pallet (air)

48 pc(s)

Products per pallet (air)

480 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

196.7 cm

Pallet gross weight (sea)

398.9 kg

Master (outer) cases per pallet (sea)

48 pc(s)

Products per pallet (sea)

480 pc(s)

Pallet height (sea)

196.7 cm

Shipping (inner) case gross weight

7.79 kg

Performance

Harmonized System (HS) code

85176990

Mean time between failures (MTBF)

2053751 h

Management features

Switch type

Unmanaged

Switch layer

L2

Quality of Service (QoS) support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

Data transmission

Supported data transfer rates

10/100/1000 Mbps

Switching capacity

16 Gbit/s

MAC address table

8000 entries

Store-and-forward

Y

Maximum data transfer rate

1 Gbit/s

Jumbo frames support

Y

Packet buffer memory

0.128 MB

Security

MAC address filtering

Y

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

10 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

9.548 BTU/h

Other features

Data transfer rate

2000 Mbit/s

Dimensions (WxDxH)

162 x 102 x 28 mm

Connectivity technology

Wired
