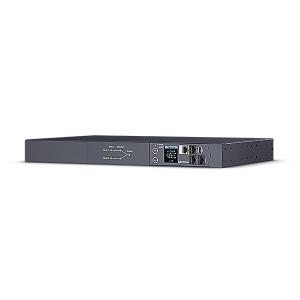

Power Distribution Unit (pdu) - 12x Ac Outlet(s) 1u - Grey

Introduction

CyberPower PDU44004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Design

PDU types

Managed, Switched

Type

Single-phase

Rack capacity

1U

Mounting

Horizontal

Housing material

Steel

Product colour

Black

Display

LCD

Ports & interfaces

AC outlets quantity

12 AC outlet(s)

Power plug

IEC 60309

AC outlet types

C13 coupler, C19 coupler

Ethernet LAN (RJ-45) ports

4

USB ports quantity

1

Features

Daisy chain

Yes

Cable length

3.05 m

Management features

Monitoring

Current, Power, Voltage

Supported network protocols

IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog

Firmware upgradeable

Yes

Firmware upgradeable via

USB

Power

Nominal input voltage

200 - 240 V

AC input frequency

50 - 60 Hz

Maximum current

12 A

Certificates

Compliance certificates

CE, RoHS

Certification

CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368

Sustainability

Sustainability compliance

Yes

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-15 - 55 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 4000 m

Non-operating altitude

0 - 15000 m

Weight & dimensions

Width

433 mm

Depth

215 mm

Height

44 mm

Weight

3.7 kg

Packaging content

Cables included

Serial

Manual

Yes

Rack mount kit

Yes

Packaging data

Package weight

6 kg

Package width

550 mm

Package depth

398 mm

Package height

125 mm

Logistics data

Country of origin

China
