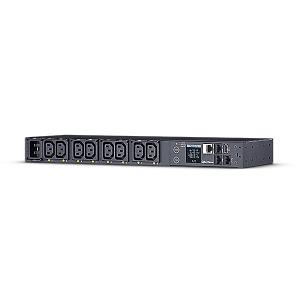

Power Distribution Unit (pdu) - 8x Ac Outlet(s) 1u - Black

Introduction

Streamline capacity planning and power management with the CyberPower PDU81005 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, automated load shedding, controlled power-cycling and more.

The PDU81005 supports inputs between 100-240V and includes eight (8) IEC-320 C13 outlets and a single IEC-320 C20 input power plug. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81005 is protected by a three-year limited warranty.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Per Outlet Power Metering
Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.

CyberPower Management Console
A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.

Remote and Local Monitoring
Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.

Digital Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

1U Mounting Brackets
Space-efficient 1U design allows PDU to be installed horizontally or vertically, under a counter or via wall mount.

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

Design

PDU types

Monitored, Switched

Type

Single-phase

Rack capacity

1U

Mounting

Horizontal

Housing material

Steel

Product colour

Black

Display

LCD

Ports & interfaces

AC outlets quantity

8 AC outlet(s)

Power plug

C20 coupler

AC outlet types

C13 coupler

Serial ports quantity

1

Ethernet LAN (RJ-45) ports

4

USB ports quantity

1

Features

Daisy chain

Yes

LED indicators

Yes

Cable length

3.05 m

Security algorithms

802.1x RADIUS, HTTPS, SSH, SSL/TLS

Management features

Supported network protocols

IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog

Firmware upgradeable

Yes

Firmware upgradeable via

USB

Power

Nominal input voltage

100 - 240 V

AC input frequency

50 / 60 Hz

Maximum current

16 A

Nominal output voltage

100 - 240 V

Certificates

Compliance certificates

RoHS

Certification

FCC Class A, UL60950, UL62368, EN 55032 Class A

Sustainability

Sustainability compliance

Yes

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-15 - 65 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3500 m

Non-operating altitude

0 - 15000 m

Operating temperature (T-T)

32 - 140 °F

Weight & dimensions

Width

433 mm

Depth

112 mm

Height

44 mm

Weight

2.1 kg

Packaging content

Bundled software

PowerPanel Business, PowerPanel Enterprise

Packaging content

PDU81004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable

Packaging data

Package weight

3.9 kg

Package width

500 mm

Package depth

250 mm

Package height

65 mm
