Flex Medium Room Upgrade Solution - Microsoft Teams Rooms

Introduction

The UC-M50-T-UPGRD solution provides all of the necessary components to upgrade a deployed Crestron Flex tabletop conference device (CCS-UC-1, CCS-UC-1-AV, or CCS-UC-1-AV-PLUS) and camera to a complete video conference system for use with the Microsoft Teams Rooms intelligent communications platform. It supports single or dual video displays and features UC Bracket Assembly and cables.

Native Microsoft Teams Rooms Experience
The UC-M50-T-UPGRD system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Simplified Deployment

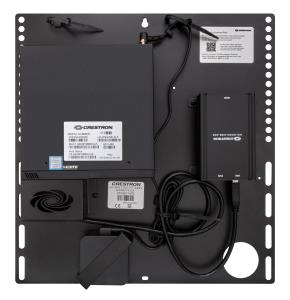

The UC Bracket Assembly (UC-BRKT-200-S-T-ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the to the UC Bracket Assembly.

Crestron Control System Integration
The UC-M50-T-UPGRD can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service4 is an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.

Technical details

Harmonized System (HS) code

85176990

Performance

Product colour

Black

Product type

Group video conferencing system

Network

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000 Mbit/s

Computer system

Computer system type

Mini PC

Operating system installed

Windows 10 IoT

Power

Power source type

AC

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Weight & dimensions

Width

368 mm

Depth

44 mm

Height

381 mm

Weight

3 kg

Packaging content

Cables included

HDMI, LAN (RJ-45), USB
