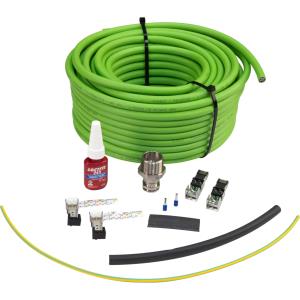

Skd02-t Non-armored Cable Kit 25m

Introduction

For hazardous areas

This non-armored data cable is specially designed for hazardous areas in accordance with IEC/EN 60079-14 for use in arctic and tropical temperatures, -60 °C to 80 °C (-76 °F to 176 °F). The cable meets the transmission characteristics for Cat 6A of IEC 61156-5 Edition 2. It is halogen-free and resistant to mechanical stress, oils, and greases. SKD02-T is a high-speed Industrial Ethernet cable for fixed installations in dry, wet, or damp rooms.

Features

Product colour

Green

Cable length

25 m

Cable standard

Cat6a

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male/Female

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Jacket material

Polyurethane (PUR)

Cable shape

Round

AWG wire size

23/1

Operational conditions

Operating temperature (T-T)

-60 - 80 °C

Storage temperature (T-T)

-30 - 80 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Sustainability

Doesn't contain

BFR, CFR, PVC

Certificates

Compliance certificates

REACH, RoHS

Certification

EN 60079-14:2014, IEC 60079-14:2013, EN 50288-10-1, IEC 61156-5, EN 50173, ISO/IEC 11801 2. edition, IEC 60754-2, UL AWM 21586, EN 60332-1-2, IEC 60811-404, ATEX, IECEX, INMETRO, KCs

Weight & dimensions

Weight

2.5 kg
