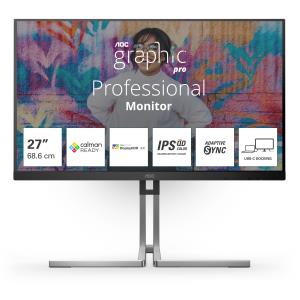

Monitor - 27in QHD IPS QD Calman Ready 96W USB C HDMI DVI HA

Introduction

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and stunning IPS QD panel
The AOC Graphic Pro Q27U3CV ensures incredibly accurate colors right out of the box, thanks to its hardware calibration, which achieves a Delta E<2 (sRGB). With the Calman Ready feature, you can easily fine-tune the settings for optimal performance. Covering 98% of the DCI P3 color space, as well as 100% of sRGB and Rec 709, it’s perfect for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E<2 accuracy guarantees precise color rendering, even beyond what the human eye can perceive. Combined with its IPS QD panel, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it’s the top choice for professionals.

Display

Digital vertical frequency

48 - 75 Hz

LED backlight

Yes

Backlight type

W-LED

Response time measurement type

GTG (Gray to Gray)

Anti-glare screen

Yes

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

50000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Pixel density

109 ppi

Surface hardness

3H

Display diagonal

68.6 cm (27")

Display resolution

2560 x 1440 pixels

HD type

4K Ultra HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

IPS Quantum Dot

Touchscreen

No

Display brightness (peak)

420 cd/m²

Response time

4 ms

Screen shape

Flat

Maximum refresh rate

75 Hz

Pixel pitch

0.2331 x 0.2331 mm

Horizontal scan range

30 - 140 kHz

Vertical scan range

48 - 75 Hz

Viewable size, horizontal

59.7 cm

Viewable size, vertical

33.6 cm

Display diagonal (metric)

68.5 cm

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

High Dynamic Range (HDR) 400

DDC/CI

Yes

Colour gamut standard

DCI-P3

Colour gamut

98%

sRGB coverage (typical)

144.5%

NTSC coverage (typical)

119.3%

Adobe RGB coverage

117.3%

BT.2020 coverage

79.4%

Design

Front bezel colour

Black/Silver

Market positioning

Graphics design

Product colour

Black

Frameless design

Yes

Detachable stand

Yes

Feet colour

Grey

Performance

Fast charging

Yes

VESA Adaptive Sync support

Yes

Flicker-free technology

Yes

Multimedia

Number of speakers

2

RMS rated power

6 W

Built-in speaker(s)

Yes

Built-in camera

No

Ports & interfaces

DisplayPort out quantity

1

Audio output

Yes

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-C

Number of upstream ports

1

USB Type-A downstream ports quantity

4

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

96 W

HDMI

Yes

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

2

DisplayPort version

1.2

Headphone out

Yes

Headphone outputs

1

HDCP

Yes

HDCP version

2.2

AC (power) in

Yes

Network

Ethernet LAN

Yes

Power

Power consumption (off)

0.3 W

Power consumption (typical)

27 W

Power consumption (standby)

0.3 W

Power consumption (max)

185 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

3 A

Power supply type

Internal

Energy efficiency class (SDR)

E

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

21 kWh

Energy consumption (HDR) per 1000 hours

42 kWh

Energy efficiency scale

A to G

Packaging content

Power cable length

1.8 m

Stand included

Yes

Cables included

AC, DisplayPort, HDMI, USB

Quick start guide

Yes

DisplayPort cable length

1.8 m

HDMI cable length

1.8 m

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Height adjustment

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-15 - 15°

Tilt adjustment

Yes

Tilt angle range

-6.5 - 23°

Plug and Play

Yes

LED indicators

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 55 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 93%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width (with stand)

613.8 mm

Depth (with stand)

238.4 mm

Height (with stand)

547.7 mm

Weight (with stand)

6.5 kg

Width (without stand)

613.8 mm

Depth (without stand)

52.5 mm

Height (without stand)

365 mm

Weight (without stand)

4.8 kg

Packaging data

Package width

825 mm

Package depth

162 mm

Package height

480 mm

Package weight

9.99 kg

Package type

Box

Other features

Bezel thickness type

Frameless

Compliance certificates

CE

Mean time between failures (MTBF)

30000 h

Local dimming

Yes

Warranty period

3 year(s)

Certification

WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,ISO 9241-307,EAC,FCC

Compatible operating systems

Windows 8.1/10/11

Sustainability

Sustainability compliance

Yes

Sustainability certificates

EPEAT, TCO

Doesn't contain

Halogen

Recycling data

Post-consumer recycled plastic

85%

Recycled content in packaging

80%
