Switch Flex Xg Layer 2 With 4 10gbe Rj45 Ports And

Introduction

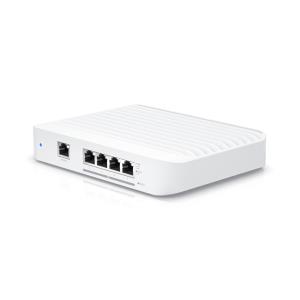

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Management features

Switch type

Managed

Switch layer

L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

4

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Network

Networking standards

IEEE 802.3at

10G support

Y

Ethernet LAN data rates

10,100,1000,2500,5000,10000 Mbit/s

Data transmission

Switching capacity

82 Gbit/s

Throughput

41 Gbit/s

Forwarding rate

61.012 Mpps

Design

Rack mounting

N

Product colour

White

Housing material

Polycarbonate (PC)

Reset button

Y

LED indicators

Y

Power

Power supply included

Y

AC input voltage

90 - 264 V

DC input voltage

5 V

Input current

5 A

Power consumption (max)

25 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

135 mm

Depth

185 mm

Height

32 mm

Weight

1.2 kg
