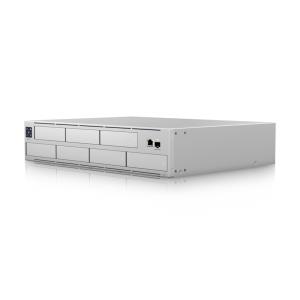

Network Video Recorder Pro

Introduction

The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras).

The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.

The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.*

Logistics data

Harmonized System (HS) code

85219000

Performance

Video input channels

60 channels

Wireless LAN features

Wi-Fi

N

Storage

Number of HDDs supported

7

HDD size

2.5/3.5"

RAID support

Y

RAID levels

1, 5, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

1000,10000 Mbit/s

Features

Rack mounting

Y

Rack capacity

2U

LED indicators

Y

Product colour

Grey

Display

Built-in display

Y

Display diagonal

3.3 cm (1.3")

Power

Power consumption (max)

165 W

AC input voltage

50/60 V

Power supply

200 W

Operational conditions

Operating temperature (T-T)

-5 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

442 mm

Depth

325 mm

Height

87 mm

Weight

9.2 kg
