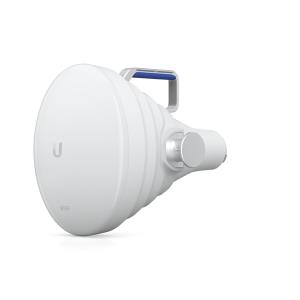

Uisp Horn Antenna

£189.06 (Excl VAT)
£226.87 (incl. VAT)

Part Number:	UISP-HORN
Language:	IN
	Stock not available Real time Stock Check

Add

Product Details

Introduction

The UISP® Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber 5XHD Radio (AF 5XHD), LTU Rocket , or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations.

Performance

Frequency band

5.15 - 6.875 GHz

Horizontal beam width

30°

Vertical beam width

25°

Antenna gain level (max)

19.5 dBi

Features

Antenna type

Horn antenna

Polarization

Dual polarization

Product colour

White

Housing material

Aluminium, Polycarbonate (PC)

International Protection (IP) code

IPX6

Ultraviolet (UV) resistant

Yes

Survival wind speed

200 km/h

Wind load

Mounting

Pole

Purpose

Outdoor

Isolation

20 dB

Mounting pipe

25 - 70 mm

Compatible products

airFiber 5XHD Radio (AF 5XHD), LTU Rocket, or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC)

Weight & dimensions

Width

224 mm

Depth

380 mm

Height

282 mm

Weight

3.06 kg

Packaging content

Mounting kit

Yes
