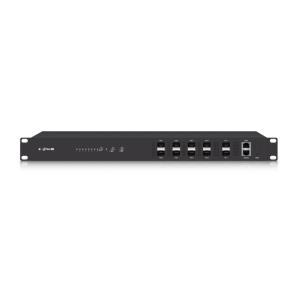

U Fiber Switch Uf-olt 8 Pon And 2 Sfp+ Ports

Introduction

Centralized Management

Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.

Client and Uplink Connectivity

The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.

Power Versatility

Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.

Rackmount Design

The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"-wide rack.

Management features

Switch type

Managed

Quality of Service (QoS) support

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports type

None

SFP module slots quantity

8

SFP+ module slots quantity

2

Console port

RJ-45

Network

10G support

Y

Optical fiber

Wavelength

1490 nm

Design

Rack mounting

Y

Form factor

1U

Product colour

Black

Reset button

Y

Certification

CE, FCC, IC

Performance

Built-in processor

Y

Processor frequency

880 MHz

Memory type

DDR3-SDRAM

Internal memory

512 MB

Power

Power supply included

Y

AC input voltage

100 - 240 V

Input voltage

25 V

Power consumption (max)

40 W

Operational conditions

Operating temperature (T-T)

-10 - 45 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

442.4 mm

Depth

285.6 mm

Height

43.7 mm

Weight

4.4 kg
