Unifi Ap Ac Mesh Pro - 5 Pack

Introduction

Scalable Enterprise Wi-Fi Management

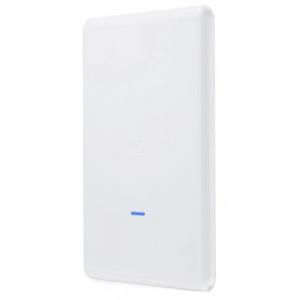

UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Features

Save money and save time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of using the UniFi Cloud Key with built-in software.

Powerful HardwareThe UniFi AC Mesh APs feature Wi-Fi 802.11AC with Plug & Play Mesh technology.

Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.

Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one and expand to thousands while maintaining a single unified management system.

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

1300 Mbit/s

Wi-Fi data rate (max)

1300 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.4 - 5 GHz

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Wi-Fi Multimedia (WMM)/(WME)

Y

VLAN support

Y

Quality of Service (QoS) support

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

DC-in jack

Y

Power

Power over Ethernet (PoE)

Y

AC input voltage

44 V

Input current

0.5 A

Power consumption (max)

9 W

Design

Placement

Pole, Wall

Product colour

White

Reset button

Y

LED indicators

Y

Certification

CE, FCC, IC

Internal

N

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

-40 - 70 °C

Weight & dimensions

Width

343.2 mm

Depth

181.2 mm

Height

60.2 mm

Weight

633 g

Packaging data

Mounting kit

Y

Quick start guide

Y
