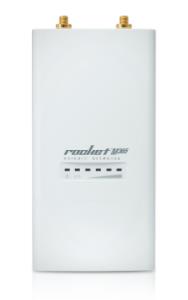

Rocket Mimo Airmax 3.65 GHz

Introduction

Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.

Plug and Play Integration

Rocket™radios seamlessly work together with airMAX®Sector, RocketDish™, Omni and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.

Advanced Software Technology

Ubiquiti’s airMAX®technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Frequency and Channel Flexibility

Built to survive harsh environments, the Rocket™M is available in several frequency models and supports multiple channel bandwidths, depending on the specific model and local country regulations.

Spectrum Analysis Tools

The airView Spectrum Analyzer allows operators to identify noise signatures and analyze frequency usage and activity levels onsite, so new access points can be set up on the least-used channels to optimize wireless performance.

Features

Maximum data transfer rate

150 Mbit/s

Ethernet LAN data rates

10,100 Mbit/s

Frequency band

3.65 - 3.675 GHz

Channel bandwidth

25 MHz

VLAN support

Y

Quality of Service (QoS) support

Y

Transmitting power

25 dBmW

Security

Security algorithms

WPA2-AES

Protocols

DHCP client

Y

Management protocols

SNMP

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Design

Product colour

White

LED indicators

Y

Certification

FCC, IC, CE, RoHS

Internal

N

Antenna

Antenna connector type

RP-SMA

Number of connectors

2

Performance

Built-in processor

Y

Processor architecture

MIPS 24Kc

Flash memory

8 MB

Internal memory

64 MB

Weight & dimensions

Width

160 mm

Depth

80 mm

Height

30 mm

Weight

500 g

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

-30 - 70 °C
