Nanobeam Ac Airmax Ac Cpe With Dedicated Management Radio

Introduction

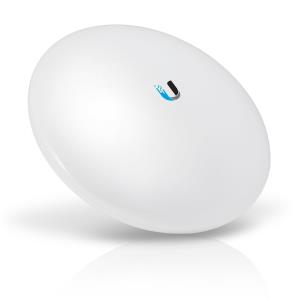

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management.

Improved Noise Immunity
The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This
feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint.

Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.

Features

2.4 GHz

Y

5 GHz

N

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.412 - 2.472 GHz

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

WAN connection

Wi-Fi

Power

Power over Ethernet (PoE)

Y

Output voltage

24 V

Output current

0.5 A

Power consumption (max)

7.5 W

Design

Placement

Pole

Product colour

White

Housing material

Plastic

LED indicators

LAN, Power, Signal strength

Certification

RoHS, CE, FCC, IC

Internal

N

Antenna

Antenna gain level (max)

13 dBi

Performance

Built-in processor

Y

Internal memory

64 MB

Operating system installed

AirOS

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

-40 - 70 °C

Weight & dimensions

Width

189 mm

Depth

125 mm

Height

189 mm

Weight

530 g

Packaging data

PoE adapter included

Y

Mounting kit

Y
