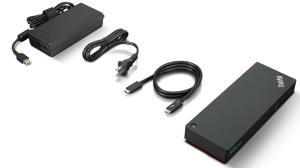

ThinkPad Universal Thunderbolt 4 Smart Dock - Thunderbolt / HDMI / 2x DP / 4x USB-A / 1x USB-C / 3.5mm / Gbe - 100W USB Power Delivery - UK

Introduction

A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it’s all powered by Microsoft Azure Sphere.

Ports & interfaces

Connectivity technology

Wired

Host interface

Thunderbolt 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

2

DisplayPort version

1.4

Thunderbolt 4 ports quantity

1

Combo headphone/mic port

Y

Headphone connectivity

3.5 mm

DC-in jack

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Performance

Data transfer rate

40 Gbit/s

Number of displays supported

4

Maximum refresh rate

60 Hz

Product colour

Black

Certification

cULus, FCC, ICES, NOM

Power

Power source type

DC

Input current

6.75 A

Power consumption (max)

100 W

Software

Windows operating systems supported

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

220 mm

Depth

80 mm

Height

30 mm

Weight

460 g

Packaging data

Package width

270 mm

Package depth

195 mm

Package height

85 mm

Package weight

1.23 kg

Packaging content

Cables included

AC, Thunderbolt

AC adapter included

Y
