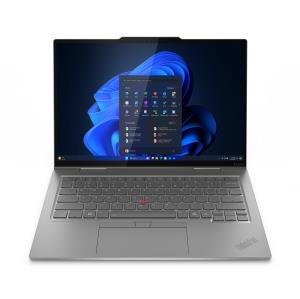

ThinkPad X1 2IN1 G10 - 14IN TOUCH - ULTRA 7 255U - 32GB - 1TB - W11P

Introduction

ThinkPad X1 2-in-1 Gen 10

Unlock AI-accelerated experiences with the new-gen ThinkPad, powered by Intel® V Series Core Ultra 7 Processor and an integrated AI engine (NPU). Whether you're managing large datasets or running AI-driven applications, this processor ensures seamless multitasking. With up to 118 TOPS of performance, business professionals can run simulations, process massive volumes of data, and leverage AI applications without lag. Store all your business documents, media, and critical files effortlessly with up to 2TB of SSD storage. Paired with up to 32GB of LPDDR5x memory, you’ll experience ultra-fast data access and the ability to handle demanding applications simultaneously.

Design

Colour name

Grey

Product type

Hybrid (2-in-1)

Product colour

Grey

Form factor

Convertible (Folder)

Housing material

Aluminium

Stylus pen support

Yes

Display

Display diagonal

35.6 cm (14")

Display resolution

2880 x 1800 pixels

Touchscreen

Yes

HD type

2.8K

Panel type

OLED

LED backlight

Yes

Native aspect ratio

16:10

Anti-reflective coating

Yes

Anti-smudge coating

Yes

Display brightness

500 cd/m²

RGB colour space

DCI-P3

Colour gamut

100%

Maximum refresh rate

120 Hz

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

DisplayHDR True Black 500

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 7

Processor generation

Intel Core Ultra (Series 2)

Processor model

255U

Processor cores

12

Processor threads

14

Processor boost frequency

5.2 GHz

Performance cores

2

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

5.2 GHz

Efficient-core Max Turbo Frequency

4.2 GHz

Low Power Efficient-core Max Turbo Frequency

2.4 GHz

Performance-core base frequency

2 GHz

Efficient-core base frequency

1.7 GHz

Low Power Efficient-core Base Frequency

700 MHz

Processor cache

12 MB

Processor base power

15 W

Maximum turbo power

57 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory

32 GB

Internal memory type

LPDDR5x-SDRAM

Memory clock speed

8400 MHz

Memory form factor

On-board

Maximum internal memory

32 GB

Storage

Total storage capacity

1 TB

Storage media

SSD

Total SSDs capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

SSD interface

PCI Express

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Optical drive type

No

Card reader integrated

No

Graphics

Discrete graphics card model

Not available

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

No

On-board graphics card family

Intel Graphics

On-board graphics card model

Intel Graphics

Audio

Audio chip

Realtek ALC3306

Audio system

Dolby Atmos

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera

Yes

Front camera HD type

Ultra HD

Infrared (IR) camera

Yes

Privacy camera

Yes

Privacy type

Privacy shutter

Network

Mobile network generation

5G

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Mobile network connection

Yes

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 6E AX211

WLAN controller manufacturer

Intel

Ethernet LAN

No

Bluetooth

Yes

Bluetooth version

5.3

Near Field Communication (NFC)

No

WWAN

Installed

WWAN controller

Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB4 Gen 3x2 ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge

Yes

USB Sleep-and-Charge ports

1

Performance

Motherboard chipset

Intel SoC

Keyboard

Pointing device

ThinkPad UltraNav

Numeric keypad

No

Keyboard backlit

Yes

Keyboard language

UK English

Software

Operating system architecture

64-bit

Operating system language

English, US English

Operating system installed

Windows 11 Pro

Bundled software

Intel Connectivity Performance Suite

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

57 Wh

Power

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

USB Type-C charging port

Yes

USB Power Delivery (USB PD)

Yes

Security

Cable lock slot

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Smart card reader

No

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection type

Power on, SSD, Supervisor

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

5 - 43 °C

Operating relative humidity (H-H)

8 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3048 m

Certificates

Compliance certificates

RoHS

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT Gold, TCO

Weight & dimensions

Width

312.8 mm

Depth

217.7 mm

Height (front)

1.62 cm

Height (rear)

1.83 cm

Weight

1.22 kg

Packaging content

AC adapter included

Yes
