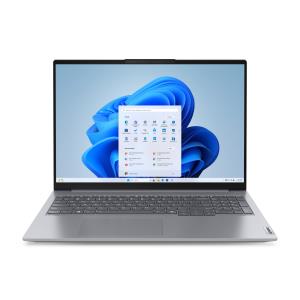

ThinkBook 16 G7 IML - 16in - Core Ultra 7 155H - 16GB Ram - 512GB SDD - Win11 Pro - Qwerty UK

Introduction

Redefined Mobility at Work — Peak Performance & Power
- Huge 16? SMB laptop with AI-accelerated Intel® Core™ Ultra processors
- Speedy response time, all-day battery life, & instant wake with Intel Evo™ Edition
- Includes numeric pad for convenient data entry & number crunching
- Enables seamless video calls with rich visuals & noise-canceling audio
- Ideal for demanding tasks like data analysis, financial modeling, and video conferencing

Design

Colour name

Arctic grey

Product type

Laptop

Product colour

Grey

Form factor

Clamshell

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Display

Display diagonal

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touchscreen

No

HD type

WUXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

16:10

Anti-glare screen

Yes

Display brightness

300 cd/m²

RGB colour space

NTSC

Colour gamut

45%

Maximum refresh rate

60 Hz

Contrast ratio (typical)

1000:1

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 7

Processor generation

Intel Core Ultra (Series 1)

Processor model

155H

Processor cores

16

Processor threads

22

Processor boost frequency

4.8 GHz

Performance cores

6

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

4.8 GHz

Efficient-core Max Turbo Frequency

3.8 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

Low Power Efficient-core Base Frequency

700 MHz

Processor cache

24 MB

Processor cache type

Smart Cache

Processor base power

28 W

Maximum turbo power

115 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Windows Studio effects support

Yes

AI datatype support on NPU

FP16, FP32, Int8

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory

16 GB

Internal memory type

LPDDR5-SDRAM

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x SO-DIMM

Maximum internal memory

64 GB

Memory channels

Dual-channel

Storage

Total storage capacity

512 GB

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

Optical drive type

No

Card reader integrated

Yes

Compatible memory cards

SD

Graphics

Discrete graphics card model

Not available

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

No

On-board graphics card family

Intel Arc Graphics

On-board graphics card model

Intel Arc Graphics

Audio

Audio chip

Realtek ALC3287

Audio system

Dolby Audio

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Infrared (IR) camera

Yes

Privacy camera

Yes

Privacy type

Privacy shutter

Network

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.3

WWAN

Not installed

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

1

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery

Yes

USB Sleep-and-Charge

Yes

USB Sleep-and-Charge ports

1

Performance

Motherboard chipset

Intel SoC

Keyboard

Pointing device

Touchpad

Keyboard language

UK English

Numeric keypad

Yes

Keyboard backlit

Yes

Spill-resistant keyboard

Yes

Software

Operating system architecture

64-bit

Operating system language

English

Trial software

Office

Operating system installed

Windows 11 Pro

Bundled software

Office Trial

Battery

Battery technology

Lithium Polymer (LiPo)

Battery capacity

71 Wh

Battery life (max)

11.05 h

Continuous video playback time

23.83 h

Fast charging

Yes

Power

AC adapter power

100 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Security

Cable lock slot

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection type

HDD, Power on, Supervisor

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

5 - 43 °C

Operating relative humidity (H-H)

8 - 95%

Storage relative humidity (H-H)

5 - 95%

Maximum shipping altitude

3048 m

Certificates

Certification

ErP Lot 6 ErP Lot 26 TCO Certified 9.0 MIL-STD-810H

Sustainability

Sustainability compliance

Yes

Sustainability certificates

TCO, ENERGY STAR, EPEAT Gold, RoHS

Weight & dimensions

Width

356 mm

Depth

253.5 mm

Height

17.5 mm

Weight

1.7 kg
