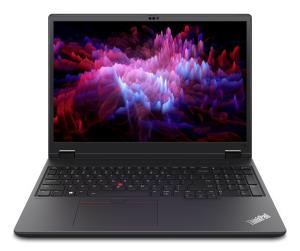

ThinkPad P16v Gen 2 (Intel) - 16in - Core Ultra 7 155H - 32GB Ram - 1TB SSD - RTX 500 Ada 4GB - Win11 Pro - 1 Year Premier - Qwerty UK

Introduction

Performance, Portability, & Affordability All in One
- 16? mobile workstation with Intel® Core™ Ultra processor & up to Intel vPro®
- AI-ready Neuro Processing Unit (NPU) for large workloads & heavy multitasking
- Enable high-end workloads & animations with up to NVIDIA® RTX™ 3000 Ada GPUs
- Protected by ThinkShield, ISV certified, & MIL-STD 810H tested for durability

Design

Colour name

Black

Product type

Mobile workstation

Product colour

Black

Form factor

Clamshell

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

Display diagonal

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touchscreen

No

HD type

WUXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

16:10

Anti-glare screen

Yes

Display brightness

300 cd/m²

RGB colour space

NTSC

Colour gamut

45%

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 7

Processor generation

Intel® Core™ Ultra (Series 1)

Processor model

155H

Processor cores

16

Processor threads

22

Processor boost frequency

4.8 GHz

Performance cores

6

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

4.8 GHz

Efficient-core Max Turbo Frequency

3.8 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

Low Power Efficient-core Base Frequency

700 MHz

Processor cache

24 MB

Processor cache type

Smart Cache

Processor base power

28 W

Maximum turbo power

115 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Windows Studio effects support

Yes

AI datatype support on NPU

FP16, FP32, Int8

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory

32 GB

Internal memory type

DDR5-SDRAM

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

2 x 16 GB

Memory slots

2x SO-DIMM

Maximum internal memory

96 GB

Storage

Total storage capacity

1 TB

Storage media

SSD

Total SSDs capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

Optical drive type

No

Card reader integrated

Yes

Compatible memory cards

SD

Graphics

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA RTX 500 Ada

Discrete graphics card memory

4 GB

Discrete graphics memory type

GDDR6

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

Yes

On-board graphics card family

Intel Arc Graphics

On-board graphics card model

Intel Arc Graphics

Audio

Audio chip

Realtek ALC3287

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera resolution (numeric)

5 MP

Infrared (IR) camera

Yes

Privacy camera

Yes

Privacy type

Privacy shutter

Network

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 6E AX211

WLAN controller manufacturer

Intel

Ethernet LAN

Yes

Bluetooth

Yes

Near Field Communication (NFC)

No

WWAN

Not installed

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt 4 ports quantity

2

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

USB Sleep-and-Charge

Yes

Performance

Motherboard chipset

Intel SoC

Keyboard

Pointing device

ThinkPad UltraNav

Keyboard language

UK English

Numeric keypad

Yes

Keyboard backlit

Yes

Software

Operating system architecture

64-bit

Operating system installed

Windows 11 Pro

Battery

Battery technology

Lithium Polymer (LiPo)

Battery capacity

90 Wh

Power

AC adapter power

170 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Security

Cable lock slot

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Smart card reader

No

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

5 - 43 °C

Operating relative humidity (H-H)

8 - 95%

Storage relative humidity (H-H)

5 - 95%

Maximum shipping altitude

3048 m

Weight & dimensions

Width

365 mm

Depth

262 mm

Height

24.7 mm

Weight

2.22 kg
