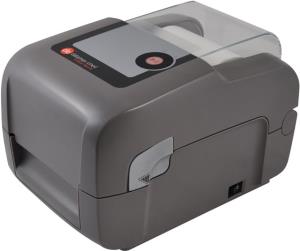

Label Printer E4204b MkIII Dt 203dpi USB Serial Dpl/zpl/epl

Introduction

3 Dimensions of Value

The E-Class Mark III is a family of compact desktop thermal printers that are designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O’Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.

We’ve made the E-Class Mark III thermal barcode printer easy to use with quick loading media and an interactive LCD screen. Users will also notice a substantial reduction in their daily operational costs thanks to the E-Class Mark III’s larger media and ribbon roll capacity. The E-Class Mark III is one of the best values on the market. It is competitively priced with a proven design and reliable performance that will continue to operate long after other barcode printers have failed.

Get the Most for Your Investment

The E-Class Mark III has many outstanding features that provide a variety of benefits. Below is a brief list of the many features and associated benefits the E-Class Mark III printer offers.

- Easy Loading - The horizontal split cabinet with a rear hinge allows for easy ribbon and label loading.
- Rugged Construction - Double wall construction and concentric hinges provide rugged structural integrity.
- Wrap around media window - Allows operator to visually verify the media level without interrupting the printing operation.
- Safe from spills –The sealed user interface panel is sealed to prevent liquids and debris from damaging the sensitive user controls.
- Lowered Ribbon Costs – Larger one-inch core standardized ribbons cost less than the typical smaller desktop ribbons.
- Large Media Roll - Reduce interruptions and increase up time with larger media capacity on the Professional + model.
- Internal Fan Fold Stack - Protects media from the environment and eliminates curl on the Professional + model.
- Easy Serviceability – No tools or experience required to replace the most critical parts, the printhead and platen roller.
- Large Graphical Display – Allows for quick and easy changes and provides visual status indication (Professional models only).
- Optional Wireless – 802.11 a/b/g and Bluetooth communication makes it easy to share, manage, and place printers where you need them (Professional models only).

Affordable to Own - The E-Class Mark III was carefully designed to maximize your investment value by offering a competitive purchase price, double walled construction for increased durability and a proven design for long term reliability.

Easy to Use - The E-Class Mark III makes it easy to replace existing printers or install new ones with popular language emulations included with each printer and a selection of connectivity options. Users will appreciate the easy-to-use LCD screen and quick loading media/ribbon.

Economical to Operate - The E-Class Mark III reduces daily operational costs by minimizing power consumption, and reducing the costs associated with printer consumables such as labels and ribbons.

Printing

Print technology

Direct thermal / Thermal transfer

Colour

N

Maximum resolution

203 x 203 DPI

Print speed

101 mm/sec

Printing colours

Black

Maximum printing width

10.8 cm

Maximum print height

2.51 m

Paper handling

Ribbon width

0.109 mm

Maximum label width

11.2 cm

Maximum label length

2.514 m

Maximum roll diameter

12.7 cm

Media thickness

0.06 - 0.25 mm

Supported paper width

19 - 112 mm

Maximum media length

2.51 m

Core diameter

2.5 cm

Ports & interfaces

Connectivity technology

Wired

Wi-Fi

N

USB port

Y

USB 2.0 ports quantity

1

RS-232 ports

1

Performance

Internal memory

32 MB

Flash memory

64 MB

Built-in barcodes

2D, AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E

Built-in processor

Y

Number of fonts

10

Image formats supported

BMP,IMG,PCX

Certification

CE, FCC, ISO 9001:2008

Design

Product colour

Grey

Backlight display

Y

Housing material

Metal, Plastic

System requirements

Windows operating systems supported

Windows NT,Windows Vista Home Premium,Windows XP Home

Operational conditions

Operating temperature (T-T)

4 - 35 °C

Weight & dimensions

Width

203.5 mm

Depth

282 mm

Height

187 mm

Weight

2.4 kg

Packaging data

Quantity per pack

1 pc(s)

Packaging content

Batteries included

Y

Drivers included

Y

AC adapter included

Y

Other features

Character sets

PC850

LED indicators

Y

Languages support

German, English, Spanish, French, Italian

Number of languages

5

Clock function

Y

Plug and Play

Y
