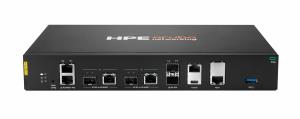

Aruba Networking 9106 2x SFP+2x Combo

Introduction

Scalable, secure, and intelligent cloud-based edge appliance
The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to extend enterprise services securely and seamlessly to large branch and small campus networks. This purpose-built high-performance edge appliance delivers Wi-Fi roaming, 24x7 reliability, and always-on connectivity – even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE ArubaOS 10 and HPE Aruba Networking Central, help drive efficient IT operations.

The HPE Aruba Networking 9100 Series Hybrid Gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and strengthens security with automated and unified role-based policy enforcement for users and IoT across LAN, WAN and SD-WAN. This cloud-based edge appliance takes advantage of HPE ArubaOS 10 distributed software architecture and HPE Aruba Networking Central for greater scalability, security, and AI-powered optimization. Importantly, it adds the versatility for network services to be provided on-premises, allowing the HPE Aruba Networking 9100 Series Hybrid Gateways to bring needed scalability to campus wireless gateway use cases or to optimize local routing and services at branch networks.

Ideal for large branch deployments and small campus networks, the HPE Aruba Networking 9100 Series Hybrid Gateway is cloudmanaged which reduces on-site IT requirements. It can operate in several modes: as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.

Design

Product colour

Black

Rack capacity

1U

Mounting type

Desktop/Rack mounting

LED indicators

Power, Status

Features

Mean time between failures (MTBF)

236076 h

Performance

Control display unit

No

Protocols

DHCP client

Yes

Network

Ethernet LAN data rates

1000 Mbit/s

Firewall throughput

10000 Mbit/s

3DES/AES throughput

10 Gbit/s

Security

Access Control List (ACL)

Yes

MAC address filtering

Yes

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Console port

RJ-45

Ethernet LAN (RJ-45) ports

2

Combo SFP ports quantity

2

SFP+ ports quantity

2

Power

Power consumption (max)

150 W

Input voltage

100 - 240 V

Input frequency

50 - 60 Hz

Output voltage

54 V

Power over Ethernet (PoE)

Yes

Heat dissipation

290 BTU/h

Weight & dimensions

Width

294.8 mm

Depth

201.1 mm

Height

43.7 mm

Weight

2.31 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 95%
