Sc Multi-mode Media Converter (550m)

£27.24 (Excl VAT)
£32.68 (incl. VAT)

Part Number:	DMC-F15SC/B
Language:	IN
	Stock not available Real time Stock Check

Add

Product Details

Introduction

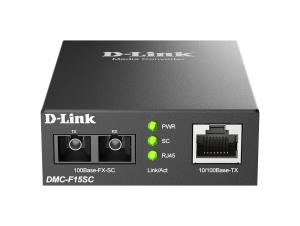

The DMC-F15SC is a standalone media converter designed to convert a twisted-pair 10/100Base- TX Fast Ethernet connection to a single-mode fibre 100Base-FX Fast Ethernet connection to extend a connection distance (up to 15 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.

Network

Maximum data transfer rate

100 Mbit/s

Converter input interface

100Base-TX

Converter output interface

100Base-FX

Networking standards

IEEE 802.3, IEEE 802.3u

Ethernet interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Auto MDI/MDI-X

Yes

Performance

Maximum transfer distance

15000 m

Fiber mode structure

Single-mode

Features

Internal

LED indicators

Yes

Product colour

Black

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

Fiber ports quantity

Fiber optic connector

FX, SC

Power

Input voltage

5 V

Input current

0.55 A

Power consumption (max)

1.5 W

Weight & dimensions

Width

93.5 mm

Depth

70.5 mm

Height

26 mm

Weight

134 g

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

20 - 80%

Certificates

Certification

LVD CE Class B
