Part Number: | NSYSFEB |
Language: | NS |

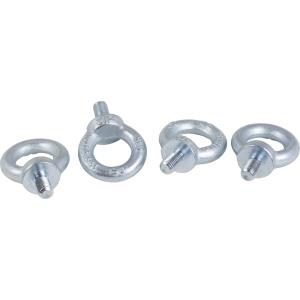

Set of M12 lifting eyebolt for Spacial SF/SFHD/SFM, Prisma PH. H is62.5 x W is55 x D is24 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish. Set of 4.
Main
Bereich | Spacial |
---|---|
Kategorie | Lifting accessory |
product or component type | Lifting eye |
Anwendung | Multi-purpose |
mounting location | Enclosure top |
mounting support | Directly in the axis of the uprights |
range compatibility | Spacial SF Spacial SFHD Prisma PH Spacial SFM |
device composition | 4 eyebolt |
quantity per set | Set of 1 |
Complementary
material | Cast steel |
---|---|
surface finish | Galvanized |
fixing mode | Screwed |
permanent permissible load | 340 kg for 1 eyebolt vertical direction |
height | 62.5 mm |
width | 55 mm |
depth | 24 mm |
diameter | 29 mm |
ISO thread | M12 |
