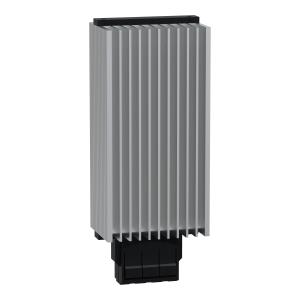

ClimaSys PTC Heating Resistance 100W 110-250V
£96.89
| Part Number: | NSYCR100WU2 |
| Language: | NS |
Product Details
Introduction
ClimaSys PTC heating resistance. 100W, 110-250V AC, 50/60 Hz. Vertical operating position. -40-70 °C ambient temp for operation. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Specifications
Main
| range | ClimaSys |
|---|---|
| product name | ClimaSys CR |
| product or component type | Resistance heater |
| range compatibility | P G |
| power range | 90 W |
| input voltage | 110...250 V AC 50/60 Hz |
Complementary
| operating position | Vertical |
|---|---|
| ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| product certifications | UL VDE |
| material | Body: extruded aluminium |
| height | 200 mm |
| width | 85 mm |
| depth | 65 mm |
| condition of use | Heaters must be installed with a thermal controller Air sealed enclosure Electrical protection is needed |
| fixing mode | By clips |
| mounting support | 35 mm DIN rail |
