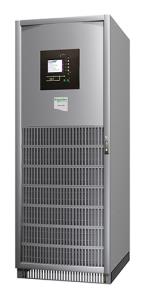

MGE Galaxy 5500 120kVA 400V Single UPS, Start-Up 5x8
£15,468.21
| Part Number: | G55TUPSU100HS |
| Language: | IN |
Product Details
Introduction
MGE Galaxy 5500 100kVA 400V Single UPS, Start-up 5x8
A versatile 3-phase UPS for facility, industrial and data center applications. Configurable system with a comprehensive range of accessories to meet your application demands.
Features
UPS topology
Double-conversion (Online)
Output power capacity
100 kVA
Output power
90000 W
Waveform
Sine
Input operation voltage (min)
250 V
Input operation voltage (max)
477 V
Input frequency
45/65 Hz
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Output frequency
50/60 Hz
Maximum current
480 A
Input power factor
1
Crest factor
3:1
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
2.5%
Input current Total Harmonic Distortion (THD)
3%
Noise level
61.4 dB
Power protection features
Overload
Ports & interfaces
AC outlet types
Hard Wire 4-wire (3PH + G), Hard Wire 4-wire (3PH + N)
SmartSlot
Y
Battery
Battery voltage
432 V
Battery recharge time
10 h
Design
Form factor
Tower
Product colour
Grey
Display type
LCD
LED indicators
Y
International Protection (IP) code
IP20
Certification
CE, EN/IEC 62040-3, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 1000 m
Non-operating altitude
0 - 12000 m
Weight & dimensions
Width
712 mm
Depth
850 mm
Height
1900 mm
Weight
520 kg
Package width
980 mm
Package depth
960 mm
Package height
2030 mm
Package weight
540 kg
