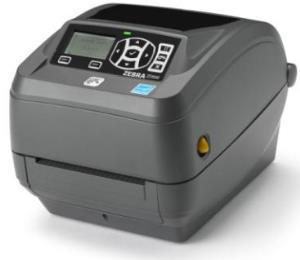

Zd500 - 104mm - 300dpi - Serial And USB And Parallel And Ethernet With Peel

Introduction

Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

- Tool-less printhead and platen replacement;
- OpenACCESS™ for easy media loading;
- Quick and easy ribbon loading;
- Simplified calibration of media;
- Quad connectivity: USB, Parallel, Serial, and Ethernet;
- Real-time clock;
- LCD User Interface;
- Zebra E3 Printhead Energy Control;
- ENERGY STAR® qualified;
- Link-OS™enabled;
- Print Touch™ app;
- Unicode compliant for multi-language printing;
- 16 resident expandable ZPL II® bitmap fonts;
- Two resident scalable ZPL fonts;
- Auto-switching 100-240V power supply;
- Head-up sensor;
- Standard tear-off mode feature;
- 3" media core adaptor;
- Zebra printer drivers for Windows™.

Printing

Print technology

Direct thermal / Thermal transfer

Colour

N

Maximum resolution

300 x 300 DPI

Print speed

102 mm/sec

Print speed

4 lpm

Maximum printing width

10.4 cm

Maximum print height

99 cm

Paper handling

Ribbon width

10.9 cm

Ribbon length

74 m

Maximum label width

10.8 cm

Maximum label length

0.99 m

Maximum roll diameter

12.7 cm

Media thickness

0.08 - 0.305 mm

Supported paper width

33.8 - 109.2 mm

Maximum media length

99 cm

Core diameter

1.27 cm

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN

Y

Wi-Fi

N

USB port

Y

USB 2.0 ports quantity

1

Parallel ports quantity

1

RS-232 ports

1

Performance

Internal memory

128 MB

Flash memory

256 MB

Built-in barcodes

2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E

Design

Product colour

Black

Display

LCD

Power

Power consumption (printing)

100 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

System requirements

Windows operating systems supported

Y

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

4.4 - 41 °C

Storage temperature (T-T)

-40 - 60 °C

Weight & dimensions

Width

193 mm

Depth

254 mm

Height

191 mm

Weight

2.2 kg

Packaging content

Cables included

AC, USB

Drivers included

Y

Quick start guide

Y

Technical details

Sustainability certificates

ENERGY STAR

Other features

LED indicators

Y

Cabling technology

10/100Base-T(X)
