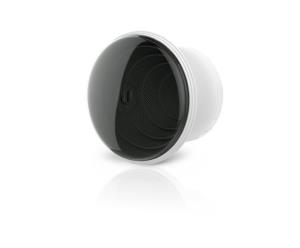

Isostation M5 Is-m5 5 GHz 150+ Mbps

Isostation M5 Is-m5 5 GHz 150+ Mbps

£104.85
£125.81
Part Number: IS-M5
Language: IN
Real time Stock Check

Product Details

Introduction

Modular Design

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

Beam Performance Perfected


The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity

IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Performance

Frequency band

5 GHz

Cabling technology

10/100/1000Base-T(X)

Antenna gain (5 GHz)

14 dBi

Horizontal beam width

45°

Vertical beam width

45°

Built-in processor

Y

Processor model

Atheros MIPS 74Kc

Internal memory

64 MB

Internal memory type

DDR2

Antenna gain level (max)

14 dBi

Features

LED indicators

Power

Mounting

Pole

Product colour

Black, White

Certification

FCC, IC, CE

Power

Input voltage

24 V

Operational conditions

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

174 mm

Depth

174 mm

Height

150 mm

Weight

725.7 g
