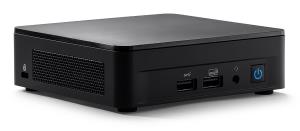

Barebone Mini Pc Wall Street Nuc12wski5 Eu - No Cord

Introduction

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Processor

Built-in processor

Y

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor generation

12th gen Intel® Core™ i5

Processor model

i5-1240P

Processor cores

12

Processor threads

16

Processor boost frequency

4.4 GHz

Processor cache

12 MB

Thermal Design Power (TDP)

35 W

CPU configuration (max)

1

Memory

Memory slots type

SO-DIMM

Number of memory slots

2

Number of DIMM slots

2

Maximum internal memory

64 GB

Supported memory clock speeds

3200 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Memory voltage

1.2 V

ECC

N

Storage

Supported storage drive types

SSD

Storage drive sizes supported

M.2

SSD form factor

M.2

Storage drive interface

M.2, PCI Express

NVMe

Y

Number of storage drives supported

2

Card reader integrated

N

Graphics

On-board graphics card

Y

Graphics card family

Intel

On-board graphics card model

Intel Iris Xe Graphics

Number of displays supported

4

Audio

Built-in speaker(s)

N

Network

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Ethernet LAN

Y

Wi-Fi

Y

LAN controller

Intel I225-V

Bluetooth

Y

Ports & interfaces

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

2

HDMI version

2.1

DisplayPorts quantity

1

Combo headphone/mic port

Y

Ethernet LAN (RJ-45) ports

1

Serial port via internal header

N

M.2 card slot (wireless)

2230 (E-key) (E)

USB ports quantity

4

M.2 card slot (storage)

2280 NVMe (M); 2242 SATA (B)

Thunderbolt 4 ports quantity

2

DC-in jack

Y

Expansion slots

PCI Express slots version

4.0

Design

Chassis type

UCFF

Product colour

Black

Cooling type

Active

On/off switch

Y

LED indicators

Y

Cable lock slot

Y

Cable lock slot type

Kensington

Product type

Mini PC barebone

Status

Launched

Performance

Motherboard form factor

UCFF

Number of processors supported

1

BIOS type

EEPROM

Trusted Platform Module (TPM)

Y

Trusted Platform Module (TPM) version

2.0

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64

Linux operating systems supported

Y

Compatible operating systems

Windows 10 IoT Enterprise*|Linux*

Commodity Classification Automated Tracking System (CCATS)

G157815L2

Harmonized System (HS) code

8471500150

Export Control Classification Number (ECCN)

5A992C

Processor special features

Intel® High Definition Audio (Intel® HD Audio)

Y

Embedded options available

N

Intel® AES New Instructions (Intel® AES-NI)

Y

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Thermal Monitoring Technologies

Y

Intel Flex Memory Access

Y

Intel Trusted Execution Technology

Y

Execute Disable Bit

Y

Intel ME Firmware Version

16

Intel® Optane™ Memory Ready

N

Intel® Platform Trust Technology (Intel® PTT)

Y

Intel Virtualization Technology (VT-x)

Y

Technical details

Sustainability certificates

China Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS

Power

Power supply type

External AC adapter

Power supply

120 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

117 mm

Depth

112 mm

Height

37 mm

Packaging content

Power cord included

Y

Other features

Launch date

Q3'22

Additional headers

Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector

Number of SATA connectors

1

DC input voltage

12 - 20 V
