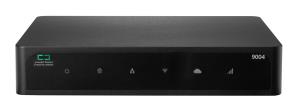

Aruba Networking 9004 (RW) TAA 4-Port 10/100/1000BASE-T Branch 2K Clients - 32 APs Gateway

Introduction

HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.

What is new supporting point:
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.

Design

Product colour

Black

LED indicators

LAN, Status, WAN, WLAN

Mounting type

Desktop/Rack mounting

Performance

Control display unit

No

Network

Ethernet LAN data rates

100,1000 Mbit/s

Security

Security algorithms

3DES, AES

VLAN support

Yes

Ports & interfaces

Console port

RJ-45

Ethernet LAN (RJ-45) ports

4

I/O ports

4x 100/1000BASE-T ports

Management features

Concurrent SSL VPN users (max)

2048

Power

Power consumption (typical)

25 W

Input voltage

12v DC, 2.5A AC-to-DC power adapter

Input frequency

47 - 63 Hz

Output voltage

12 V

Output current

2.5 A

DC input voltage

12 V

Weight & dimensions

Width

38.2 mm

Depth

199 mm

Height

153 mm

Weight

1.24 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 95%

Certificates

Certification

None

Technical details

Weight (imperial)

1.22 kg (2.7 lbs)
