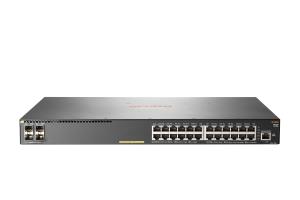

Aruba 2930F 24G PoE+ 4SFP+ Switch, (24) RJ-45 autosensing 10/100/1000 PoE+ ports

Introduction

The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.

Features

High-Performance Access Layer Switches
- The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
- Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
- Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
- Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.

Performance and Power at the Edge
- The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.

Security and Quality of Service You Can Rely on
- The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplify with Integrated Wired/Wireless Management
- The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Web-based management

Y

Traffic classification

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

4

Console port

RJ-45/micro-USB

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity

4

Console port

RJ-45

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10G support

Yes

Full duplex

Yes

Half duplex

Yes

Link aggregation

Yes

Rate limiting

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Auto-sensing

Yes

VLAN support

Yes

Virtual LAN features

Private VLAN

Networking standards

IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u

10G support

Y

Copper ethernet cabling technology

10BASE-T,100BASE-TX,1000BASE-T

Full duplex

Y

IP routing

Y

Routing entries

10000

Flow control support

Y

Link aggregation

Y

Rate limiting

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

Auto-sensing

Y

VLAN support

Y

Data transmission

Switching capacity

128 Gbit/s

Throughput

95.2 Mpps

MAC address table

32768 entries

Latency (1 Gbps)

3.8 µs

Latency (10 Gbps)

1.6 µs

Packet buffer memory

12.38 MB

Switching capacity

128 Gbit/s

Throughput

95.2 Mpps

MAC address table

32768 entries

Latency (1 Gbps)

3.8 µs

Latency (10 Gbps)

1.6 µs

Security

Access Control List (ACL)

Yes

SSH/SSL support

Yes

Authentication

MAC-based authentication, Web-based authentication

Authentication type

RADIUS, TACACS+

DHCP features

DHCP server

Access Control List (ACL)

Y

IGMP snooping

Y

SSH/SSL support

Y

Multicast features

Multicast support

Yes

Multicast support

Y

Protocols

Management protocols

SNMPv1, SNMPv2, SNMPv3

Routing protocols

RIPng, VRRP

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)

Design

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Airflow direction

Side-to-side airflow

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Grey

Performance

Virtual stacking (units)

8

Built-in processor

Yes

Processor model

ARM Cortex-A9

Processor frequency

1016 MHz

Memory type

DDR3-SDRAM

Internal memory

1024 MB

Flash memory

4096 MB

Built-in processor

Y

Processor frequency

1016 MHz

Internal memory

1024 MB

Power

Power source

AC

Power supply included

Yes

AC input voltage

200 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

445 W

Power consumption note

445W (maximum)

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

36.8 W

Power consumption (max)

445 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Total Power over Ethernet (PoE) budget

370 W

Power over Ethernet (PoE)

Y

Total Power over Ethernet (PoE) budget

370 W

Other features

Latency

1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs

Memory and processor

Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC

I/O ports

24x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP+ 1/10GbE ports PHY-less

Performance management

HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)

Weight (imperial)

3.9 kg (8.6 lbs)

Dimensions (W x D x H) (imperial)

43.9 x 442.5 x 304.3 mm (1.73 x 17.4 x 12")

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Storage relative humidity (H-H)

15 - 95%

Heat dissipation

258 BTU/h

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

15 - 95%

Heat dissipation

1518 BTU/h

Weight & dimensions

Width

43.9 mm

Depth

442.5 mm

Height

304.2 mm

Weight

3.9 kg

Width

442.5 mm

Depth

304.2 mm

Height

43.9 mm

Weight

3.9 kg
