Flex Tabletop Large Room Video Conference System Uc-m70-u Kit

Introduction

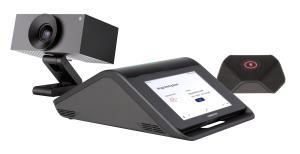

The Crestron Flex UC-M70-U provides a complete conferencing and collaboration solution for open-platform UC applications. It supports a single video display, and features the Crestron Flex tabletop conferencing device (CCS-UC-1-AV), AI collaboration camera (UC-CAM-L1), mic pod (CCS-UCA-MIC), cables, and power supply.

Intuitive User Interface with Impressive Audio
The Crestron Flex Tabletop Conference device (CCS-UC-1-AV) provides a superior conferencing and collaboration experience with its large 7 in. HD display, integrated 360° quad microphone array, and an AEC-enabled USB speakerphone that supports full-duplex wideband audio performance.

High-Definition Video Conferencing
The included AI collaboration camera (UC-CAM-L1) features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view.

Voice Calling & Audio Conferencing
The CCS-UC-1-AV is a full-featured VoIP conferencing speakerphone that’s fully compatible with major SIP-compliant phone systems. Its advanced design provides highly intelligible, full-duplex communication for every participant around a conference table. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer’s centrally managed directory.

The CCS-UC-1-AV can pair with a mobile phone using Bluetooth connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth enabled phone appear on the touch screen, enabling instant connectivity with the press of a button.

The CCS-UC-1-AV functions like any USB Audio class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop.

BYOD Multimedia Presentation
Connect a display device to the CCS-UC-1-AV's HDMI output port to enable high-definition video presentation from all types of BYOD sources.

Connect an AV source to the HDMI input port to present full-motion HD video content on the room display. Sources with DisplayPort or USB Type-C outputs can also be connected using an optional Crestron video cable system (CBL-MULTI-6 or CBL-MULTI-12, sold separately).

Use the built-in AirMedia technology for wireless presentation of content from a laptop, smartphone, or tablet device via the room’s Wi-Fi wireless network.

Performance

Number of cameras

1

Product colour

Black

Product type

Group video conferencing system

Video

HD type

Full HD

Maximum frame rate

30 fps

Audio

Number of speakers

1

Frequency range

90 - 22000 Hz

RMS rated power

7 W

Network

Ethernet LAN

Y

Ethernet LAN data rates

100 Mbit/s

Networking standards

IEEE 802.1x,IEEE 802.3at

Supported network protocols

DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP

Camera

Megapixel (approx.)

20.3 MP

Effective sensor resolution

20.3 MP

Sensor type

CMOS

Image sensor size

1"

Horizontal field of view

92°

Vertical field of view

65°

Diagonal field of view

103°

Aperture range (F-F)

2.9 - 2.9

Display

Display

TFT

Display diagonal

17.8 cm (7")

Display resolution

1280 x 800 pixels

Touchscreen

Y

Touchscreen type

Capacitive

Features

Telepresence

N

Weight & dimensions

Camera dimensions (WxDxH)

122 x 89 x 53 mm

Camera weight

600 g

Packaging content

Cables included

HDMI,USB
