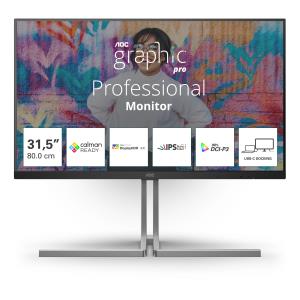

Desktop USB-C Monitor - U32U3CV - 32in - 3840x2160 (4K UHD) - Nano IPS 4ms

Introduction

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display
The AOC Graphic Pro U32U3CV delivers outstanding color accuracy right out of the box, courtesy of its hardware calibration achieving Delta E<2 (sRGB). Easily adjust settings for peak performance with the Calman Ready feature. With a remarkable 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's tailor-made for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering that exceeds human eye perception. Enhanced with a UHD Nano IPS display, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands out as the ultimate choice for professionals.

Monitor Type

TV / Monitor

Monitor

Model Specifications

Model

U3 U32U3CV

Display Type

LED

Screen Size

31.5"

Cabinet Colour

Black

Backlighting Technology

WLED

Display

Screen Technology

IPS

Pixel Pitch

0.18159 x 0.18159 mm

Response Time

4 ms

Horizontal Frequency

30 - 140 kHz

Vertical Frequency

23 - 75 Hz

Digital horizontal frequency

30 - 140 kHz

Digital vertical frequency

23 - 75 Hz

Response time measurement type

GTG (Gray to Gray)

Contrast ratio (dynamic)

80000000:1

Pixel density

140 ppi

sRGB coverage (typical)

135.3%

Display diagonal

80 cm (31.5")

Display resolution

3840 x 2160 pixels

HD type

4K Ultra HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

Nano IPS

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

400 cd/m²

Response time

4 ms

Anti-glare screen

Yes

Screen shape

Flat

Contrast ratio (typical)

1000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.073 billion colours

Pixel pitch

0.18159 x 0.18159 mm

Horizontal scan range

30 - 140 kHz

Vertical scan range

23 - 75 Hz

Viewable size, horizontal

69.7 cm

Viewable size, vertical

39.2 cm

Display diagonal (metric)

80 cm

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

DisplayHDR 400

DDC/CI

Yes

Haze rate

25%

Surface hardness

3H

Colour gamut standard

DCI-P3

Colour gamut

98%

Connectivity

Audio

Headphone outputs x 1

Display Port

DisplayPorts quantity x 1

HDMI

HDMI ports quantity x 2

USB

USB Type-A downstream ports quantity x 4
USB Type-C downstream ports quantity x 1


Brightness

400 cd/m²

Aspect Ratio

16:9

Contrast Ratio

1000:1

Colours

1.073 billion colours

Maximum Resolution

3840 x 2160

Multimedia

Multimedia Capability

Yes

Speakers

Yes, 6W

Number of speakers

2

RMS rated power

6 W

Built-in speaker(s)

Yes

Built-in camera

No

Power

Power Voltage

100 - 240 V

Power consumption (off)

0.3 W

Power supply type

Internal

Power consumption (typical)

30.37 W

Power consumption (standby)

0.3 W

Power consumption (max)

215 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

3 A

Energy efficiency class (SDR)

F

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

32 kWh

Energy consumption (HDR) per 1000 hours

56 kWh

Energy efficiency scale

A to G

Ergonomics

Height adjustment

Yes

Supported Mounting

100 x 100 mm

Swivel angle range

-15 - 15°

Tilt angle

-6.5 - 23°

Cable lock slot

Yes

Cable lock slot type

Kensington

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Height adjustment

Yes

Height adjustment

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-15 - 15°

Tilt adjustment

Yes

Tilt angle range

-6.5 - 23°

Picture-in-Picture

Yes

Plug and Play

Yes

Green Certificates

Energy Efficiency Class

G

Energy Star Certified

Yes

Epeat

Gold

Green Compliant

Yes

TCO

TCO 10

Ports & interfaces

HDCP

Yes

HDCP version

2.2

Audio output

Yes

Built-in KVM switch

Yes

Built-in USB hub

Yes

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of upstream ports

2

USB Type-A downstream ports quantity

4

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

96 W

HDMI

Yes

HDMI ports quantity

2

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone out

Yes

Headphone outputs

1

AC (power) in

Yes

Design

Front bezel colour

Black/Silver

Market positioning

Graphics design

Product colour

Black

Frameless design

Yes

Detachable stand

Yes

Feet colour

Grey

Performance

Fast charging

Yes

VESA Adaptive Sync support

Yes

Flicker-free technology

Yes

Weight & dimensions

Weight (without stand)

6.34 kg

Width (with stand)

714.4 mm

Depth (with stand)

258.6 mm

Height (with stand)

609.3 mm

Weight (with stand)

8.46 kg

Network

Ethernet LAN

Yes

Packaging data

Package weight

12.6 kg

Package type

Box

Packaging content

DisplayPort cable length

1.8 m

HDMI cable length

1.8 m

Power cable length

1.8 m

Stand included

Yes

Cables included

AC, HDMI, DisplayPort, USB Type-C

Quick start guide

Yes

Sustainability

Sustainability certificates

EPEAT Gold, TCO

Doesn't contain

Mercury, PVC/BFR

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 55 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 93%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 12192 m

Other features

Bezel thickness type

Frameless

Compliance certificates

CE

Mean time between failures (MTBF)

30000 h

Low input lag

No

Local dimming

Yes

Warranty period

3 year(s)

Certification

WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,EAC,FCC,Microsoft WHQL

Recycling data

Post-consumer recycled plastic

85%

Recycled content in packaging

80%
