Barcode Scanner Ds3608-xr Corded Rockwell Industrial Ethernet Straight Cable Kit

Introduction

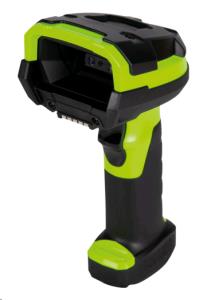

DS3600-XR Ultra-Rugged Scanner
Unstoppable performance now with the industry’s longest scanning range

When tasks get tougher, you need a scanner that’s ready for the job. The DS3600-XR sets a new standard in extended range performance, enabling workers to scan faster, farther and more accurately than ever before. The DS3600-XR maintains the proven ruggedness of the DS3600-ER, increases scanning range by more than 40% and aimer visibility up to 7x — while decreasing device weight by 10%. The DS3600-XR delivers an edge over the competition for both rapidly proliferating 2D barcodes and traditional 1D. It seamlessly reads barcodes from as close as 2 in./5 cm to over 105 ft./32 m — nearer and farther than any scanner in its class. A high visibility green laser aimer makes scanning easier and more accurate at varying distances and lighting conditions. The DS3600-XR is virtually indestructible with a best-in-class 10 ft./3 m drop spec to concrete. Superior cordless technology makes it easier for your workers to use and manage their cordless scanners. And Zebra DataCapture DNA takes scanner performance far beyond the basics.

Scanning

Type

Handheld bar code reader

Scanner type

1D/2D

Sensor type

Laser

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.

2D (matrix & stacked) barcodes supported

Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Optical sensor resolution (W x H)

1280 x 800 pixels

Wavelength

520 nm

Tilt reading angle

-60 - 60°

Pitch reading angle

-60 - 60°

Yaw reading angle

-360 - 360°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

Keyboard wedge, RS-232, USB

Ethernet LAN

Yes

Performance

International Protection (IP) code

IP67

Protection features

Water resistant

LED indicators

Yes

Print contrast

25%

Product colour

Black, Green

Programming function

Yes

Power

Power source type

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

3100 mAh

Weight & dimensions

Width

132 mm

Depth

76 mm

Height

185 mm

Weight

308 g

Packaging data

External power adapter

Yes

Operational conditions

Operating temperature (T-T)

-30 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Drop resistance

2.4 m

Technical details

Compliance certificates

RoHS
