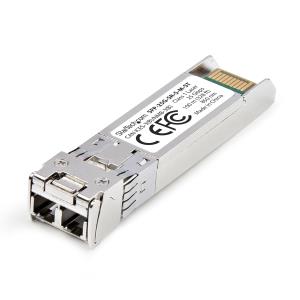

Msa-compliant Sfp-25g-sr-s Sfp28 Module, 25gbps Multimode Fiber (mmf), 100m

Introduction

Enhance the networking infrastructure with this MSA-compatible 25GBASE-SR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 100m

MSA-compliant fiber optic transceiver with 25Gbps connectivity and up to 100m (328ft) over LC-terminated Multimode Fiber (MMF) cable. The optical module has been programmed and tested for seamless integration with MSA-compatible switches and routers to ensure compatibility and reliability.

Maximize Bandwidth

The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.

Technical Specifications

• 25GBASE-SR SFP28
• Data Rate: 25Gbps
• Fiber Type: Multimode Fiber (MMF)
• Connector: LC
• Wavelength: 850nm Tx/Rx
• Distances: Up to 100m (328ft)
• Supports Digital Diagnostics Monitoring (DDM/DOM)

Compatibility

This MSA-compliant SFP works with network equipment from manufacturers that accept uncoded optical modules.

Optimized Network

The Short Range (SR) capability facilitates low-latency and scalable onsite connections within a data center or subnetworks within a building.

The StarTech.com Advantage

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

25780 Mbit/s

Interface type

SFP28

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

LC

SFP transceiver standard

SR

Maximum transfer distance

100 m

Wavelength

850 nm

Networking standards

IEEE 802.3by

Fiber ethernet cabling technology

25GBASE

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Mean time between failures (MTBF)

4020594 h

Brand compatibility

MSA Compliant

Power

Power consumption (typical)

1.2 W

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Sustainability

Sustainability compliance

Yes

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

0 - 85%

Weight & dimensions

Width

90 mm

Depth

115 mm

Height

31 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

14 mm

Package depth

57 mm

Package height

9 mm

Package weight

200 g

Logistics data

Master (outer) case width

340 mm

Master (outer) case length

420 mm

Master (outer) case height

350 mm

Products per master (outer) case

100 pc(s)
