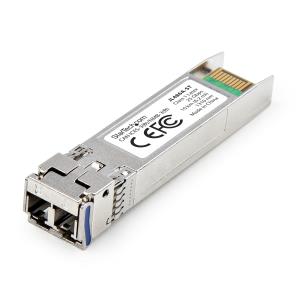

Hpe Jl486a Compatible Sfp28 Module, 25gbase-lr, 25gbps Single Mode Fiber (smf), 10km (6.2mi)

Introduction

Enhance the networking infrastructure with this HPE®-compatible 25GBASE-LR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 10km

This fiber optic transceiver is the direct equivalent to HPE® JL486A for 25Gbps connectivity up to 10km (6.2mi) over LC-terminated Single Mode Fiber (SMF) cable. The optical module has been programmed and tested for seamless integration with HPE® switches and routers to ensure compatibility and reliability.

Maximize Bandwidth

The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.

Technical Specifications

• 25GBASE-LR SFP28
• Data Rate: 25Gbps
• Fiber Type: Single Mode Fiber (SMF)
• Connector: LC
• Wavelength: 1310nm Tx/Rx
• Distances: Up to 10km (6.2mi)
• Supports Digital Diagnostics Monitoring (DDM/DOM)

Compatibility

This MSA-compliant SFP works with network equipment manufactured by HPE® and network equipment from manufacturers that accept uncoded optical modules.

Optimized Network Reach

The Long Range (LR) capability facilitates long-distance connections across or under large buildings, urban and rural network installations, and strategic singlemode fiber cable runs.

The StarTech.com Advantage

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

25780 Mbit/s

Interface type

SFP28

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

LC

Maximum transfer distance

10000 m

Wavelength

1310 nm

Networking standards

IEEE 802.3cc

Fiber ethernet cabling technology

25GBASE

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Mean time between failures (MTBF)

3292647 h

Brand compatibility

HPE

Power

Power consumption (typical)

1.2 W

Certificates

Compliance certificates

Federal Communications Commission (FCC), CE, RoHS

Sustainability

Sustainability compliance

Yes

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

0 - 85%

Weight & dimensions

Width

90 mm

Depth

115 mm

Height

31 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

14 mm

Package depth

57 mm

Package height

9 mm

Package weight

200 g

Logistics data

Master (outer) case width

340 mm

Master (outer) case length

420 mm

Master (outer) case height

350 mm

Products per master (outer) case

100 pc(s)
