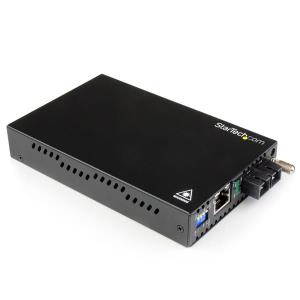

Gigabit Ethernet Single Mode Fiber Media Converter Sc - 1000 mbps - 40km

Gigabit Ethernet Single Mode Fiber Media Converter Sc - 1000 mbps - 40km

£586.10
£703.32
Part Number: ET91000SM402
Language: IN
Real time Stock Check

Product Details

Introduction

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber
The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments

Network

Maximum data transfer rate

2000 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-LX,1000Base-SX

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

1000 Mbit/s

Auto MDI/MDI-X

Y

Duplex system

Full, Half

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

1

Fiber optic connector

SC

DC-in jack

Y

Performance

Maximum transfer distance

40000 m

Wavelength

1310 nm

Fiber mode structure

Single-mode

Mean time between failures (MTBF)

65000 h

Design

Internal

N

Product colour

Black

Certification

CE, FCC

Power

Output voltage

12 V

Output current

1 A

Power consumption (typical)

4 W

External power adapter

Y

Management features

Plug and Play

Y

Weight & dimensions

Weight

600 g

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Packaging data

Package width

140 mm

Package depth

205 mm

Package height

91 mm

Package weight

700 g

Packaging content

Manual

Y

Technical details

Sustainability certificates

RoHS

Other features

Dimensions (WxDxH)

95 x 160 x 20 mm

Full duplex

Y
