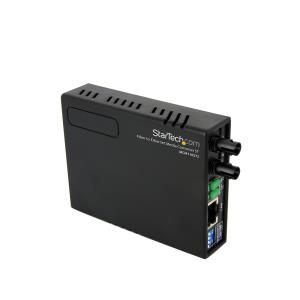

Ethernet To Multi Mode Fiber Media Converter 10/100 St 2 Km

Introduction

This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Network

Converter input interface

10Base-T

Converter output interface

100Base-FX

Networking standards

IEEE 802.3, IEEE 802.3u

Jumbo frames support

Yes

Jumbo frames

9000

Flow control support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Maximum data transfer rate

100 Mbit/s

Cabling technology

10Base-T, 100Base-Tx, 100Base-Fx

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

1

Fiber optic connector

ST

DC-in jack

Yes

Connectivity technology

Wired

Performance

Wavelength

1310 nm

Wavelength-division multiplexing (WDM)

No

Fiber mode structure

Multi-mode

Maximum transfer distance

2000 m

Design

Internal

No

LED indicators

Activity, Link, Power, Speed

Product colour

Black

Power

Input voltage

100 - 240 V

Output voltage

12 V

Output current

0.2 A

Power consumption (typical)

2.4 W

External power adapter

Yes

Power plug type

Type M

Weight & dimensions

Width

75 mm

Depth

95 mm

Height

20 mm

Weight

90.5 g

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Packaging content

AC adapter included

Yes

Manual

Yes

Logistics data

Master (outer) case width

390 mm

Master (outer) case length

480 mm

Master (outer) case height

300 mm

Products per master (outer) case

1 pc(s)

Technical details

Compliance certificates

CE, RoHS

Harmonized System (HS) code

85176990

Packaging data

Package width

145 mm

Package depth

175 mm

Package height

65 mm

Package weight

280 g

Other features

Interface

LAN

Full duplex

Y

Fiber type

MM, FX, ST
