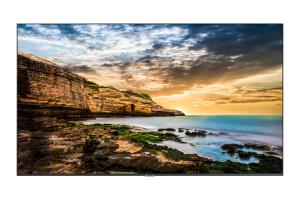

Smart Signage - Qe65t - 65in - 3840x2160 - 4k Uhd

Introduction

Features
Upgrade your business with efficient digital displays
Samsung's QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.

Incredible UHD picture quality
Samsung's QET series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images in advanced picture quality than ever before.

Crystal Display
Samsung's QET series features a Crystal Display which optimizes color tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.

Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung's Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Boundless design for an immersive experience
The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.

Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.

Display

Display diagonal

165.1 cm (65")

Display technology

LCD

Display resolution

3840 x 2160 pixels

Display brightness

300 cd/m²

HD type

4K Ultra HD

Response time

8 ms

Contrast ratio (typical)

1200:1

Dynamic contrast ratio marketing name

Mega DCR

Viewing angle, horizontal

89°

Viewing angle, vertical

89°

Pixel pitch

0.372 x 0.372 mm

Horizontal scan range

15 - 135 kHz

Vertical scan range

24 - 75 Hz

Haze rate

2%

Touchscreen

No

Display diagonal (metric)

163 cm

Pixel frequency (max)

594 MHz

Colour gamut

72%

LED backlighting type

Direct-LED BLU

Display diagonal

165.1 cm (65")

Display technology

LED

Display resolution

3840 x 2160 pixels

Display brightness

300 cd/m²

HD type

4K Ultra HD

Touchscreen

N

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

4000:1

Dynamic contrast ratio marketing name

Mega Contrast

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.372 x 0.372 mm

Horizontal scan range

30 - 81 kHz

Vertical scan range

48 - 75 Hz

Ports & interfaces

HDMI ports quantity

2

HDMI input ports quantity

2

USB port

Yes

USB ports quantity

1

Ethernet LAN

Yes

Audio (L/R) out

1

RS-232 interface

Yes

HDMI version

2.0

Wi-Fi

No

HDMI ports quantity

2

DVI port

N

USB port

Y

USB ports quantity

1

USB version

2.0

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

RS-232C

Y

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Product colour

Black

VESA mounting

Yes

Panel mounting interface

400 x 300 mm

Bezel type

3 Bezel-less

Screen shape

Flat

Bezel colour

Black

Placement supported

Indoor

Product colour

Black

VESA mounting

Y

Panel mounting interface

400 x 300 mm

Performance

Purpose

Commercial

HDCP

Yes

HDCP version

2.2

Purpose

Universal

Power

Power consumption (typical)

204 W

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

145 kWh

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Power consumption (sleep)

0.5 W

Power consumption (typical)

145 W

Power consumption (sleep)

0.5 W

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

145 kWh

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Heat dissipation

695.6 BTU/h

Energy efficiency scale

A to G

Weight & dimensions

Display width

1449.4 mm

Display depth

59.9 mm

Display height

830.3 mm

Display weight

21.2 kg

Width

1449.4 mm

Depth

59.9 mm

Height

830.3 mm

Weight

21.2 kg

Weight (with stand)

21.2 kg

Width

1449.4 mm

Depth

59.9 mm

Height

830.3 mm

Weight

21.2 kg

Packaging data

Package width

1606 mm

Package depth

184 mm

Package height

963 mm

Package volume

29400 cm³

Package weight

27.5 kg

Package width

1606 mm

Package depth

184 mm

Package height

963 mm

Package weight

29.4 kg

Computer system

Operating system installed

Tizen 4.0

Computer system

Y

Built-in processor

Y

Processor frequency

1.7 GHz

Processor cores

4

Internal memory

2 GB

Internal storage capacity

8 GB

Operating system installed

Tizen 4.0

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 80%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 80%

Certificates

Certification

Class B 60950-1

Technical details

Compliance certificates

Electromagnetic Compatibility (EMC)

Other features

Flash memory

8000 MB

Optional features

WMN4277SE

Audio

Built-in speaker(s)

Y

Number of built-in speakers

2

RMS rated power

20 W
