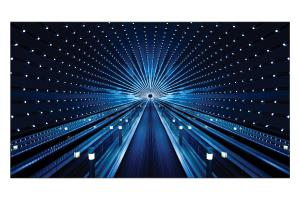

Smart Signage - Lh016iabmhs - 146in Iab Series Fhd Microled Aio

Introduction

Transform your business
The Wall is designed to create bold visual statements. The Wall All in One now addresses one of the biggest challenges of industry, drastically improving installation. The Wall, let it transform your business.

An abyss of depth
Black Seal Technology
A deep black background uniformly blankets the screen. This creates a virtually seamless canvas for black levels with depth - delivering incredible contrast and immaculate detail.

Incredible colour purity
Ultra Chroma Technology
Colours leap to life with spectacular vibrancy to recreate scenes as if you were there in real life. Narrower wavelengths produce RGB colours two times purer and more accurate than conventional LEDs*

Auto configuration setup
Built-in Control Box
Time-consuming configuration between control box and cabinet is no longer needed. The Wall All-in-One integrates the control box so it’s built-into the display, helping to eliminate a cumbersome configuration process to get the display up and running faster.

Continuous natural shading
Linear Greyscale
A precise linear greyscale showcases intricacies in virtually every scene, delivering textures, volume and continuous shadow details. The detailed continuity pulls you further into your content for unbroken immersion.

Critical decisions without complexity
Simple Choice
The Wall All-in-One removes complex elements traditionally associated with LED displays helping to create a streamlined purchase path. 'Now, choose your preferred Wall All-in-One without needing to consider technical complications such as pixel pitch or configuration. Choose your display based on just two factors - resolution and size.

No extra peripherals needed
Included Components
The Wall All-in-One includes components you need to get started - from the control box and wall brackets to speakers and deco bezels. This allows you to focus on getting your display up and running fast.

Colours mapped to perfection
20bit Processing
The Wall All-in-One offers 20bit processing to present colour mapping with accuracy. Deep bit depth at low grayscale also delivers extraordinary contrast ratio and smooth, natural tones.

Instant AI optimisation
Neural Quantum Processor 4K
Every second of content is analysed and optimised for incredible picture quality. The powerful AI processor delivers visuals in any size up to 4K* resolution, helping to enhance contrast and remove noise.

Dazzling dynamic range
MICRO HDR
Reimagine the limits of conventional screens with advanced picture refinement and LED HDR—to illuminate ideal peak brightness and contrast in every scene for precise, almost true-to-life imagery.

Smooth, seamless motion
MICRO Motion
Every motion looks sharp and clear. The Wall All-in-One automatically converts standard 60Hz signals to 120Hz, removing motion judder in fast-paced action for smoother streams and a seamless viewing experience, every time.

Display

Display technology

LED

Display diagonal

3.71 m (146")

Display resolution

1920 x 1080 pixels

HD type

Full HD

Pixel pitch

1.68 x 1.68 mm

Display brightness

1400 cd/m²

Colour temperature (min)

2800 K

Colour temperature (max)

10000 K

Contrast ratio (typical)

22000:1

Native refresh rate

7680 Hz

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10)

Viewing angle, horizontal

170°

Viewing angle, vertical

155°

Colour depth

16 bit

Panel life

150000 h

Design

Placement supported

Indoor

Orientation

Horizontal

VESA mounting

Yes

International Protection (IP) code

IP20

Product colour

Black

Operating system installed

Tizen 6.5

Ports & interfaces

HDMI ports quantity

3

DisplayPorts quantity

1

Wi-Fi

Yes

Bluetooth

Yes

USB port

Yes

USB ports quantity

2

Power

Power consumption (typical)

860 W

Power consumption (max)

1280 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Heat dissipation

4.231 BTU/h

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 45 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 95%

Sustainability

Certification

TÜV Low Blue Light, 62368-1, 60950-1, EMV

Weight & dimensions

Width

3225.6 mm

Depth

49 mm

Height

1814.4 mm

Weight

168 kg

Packaging data

Package width

2000 mm

Package depth

1000 mm

Package height

2162 mm

Package weight

301 kg
