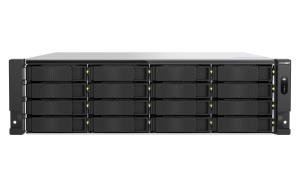

NAS - TS-H1677AXU-RP-R7-32G - 16Bay - Ryzen 7 7000 -32 DDR5

Storage

Number of system drives supported

2

Number of M.2 (M & B) slots

2

Online RAID migration

Yes

Online RAID expansion

Yes

RAID rebuild

Yes

Supported file systems

FAT32, HFS+, NTFS, exFAT, ext3, ext4

Number of storage drives supported

16

Bad block scan

Yes

Disk roaming

Yes

Storage drive interface

Serial ATA II, Serial ATA III

Supported storage drive interfaces

M.2

Storage drive sizes supported

2.5,3.5"

Hot-swap drive bays

Yes

Storage drives installed

No

Installed storage drive type

No

Supported storage drive types

HDD & SSD

Storage drive capacity

0 GB

RAID support

Yes

RAID levels

0, 1, 5, 6, 10, 50, 60, JBOD

Total installed storage capacity

0 TB

Memory

ECC

No

Internal memory type

DDR5

Maximum RAM supported

128 GB

Memory slots

4

Internal memory

32 GB

Memory form factor

UDIMM

ECC

Yes

Flash memory

5000 MB

Processor

Processor generation

AMD Ryzen PRO 7000 Series

Processor model

7745

Number of processors supported

1

On-board graphics card model

AMD Radeon Graphics

Processor manufacturer

AMD

Processor family

AMD Ryzen™ 7

Processor boost frequency

5.3 GHz

Processor cores

8

Processor threads

16

Network

Ethernet LAN data rate supported (max)

10000 Mbit/s

DHCP server

Yes

iSCSI support

Yes

Supported network protocols

IPv4, IPv6

Dynamic DNS (DDNS)

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000,2500,10000 Mbit/s

Jumbo frames support

Yes

Wake-on-LAN ready

Yes

Design

Product colour

Black, Grey

Chassis type

Rack (3U)

Number of fans

3 fan(s)

Fan diameter

6 cm

Cooling type

Active

LED indicators

HDD, LAN, SSD, Status, USB

Performance

Backup features

Cloud, USB drive, iSCSI LUN

Buzzer

Yes

Multilingual support

Yes

Number of users

4096 user(s)

Web-based management

Yes

Remote administration

PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt

Reset button

Yes

On/off switch

Yes

Built-in FTP server

Yes

System log

Yes

Password authentication

Yes

Disk scan

Yes

S.M.A.R.T. support

Yes

Share folder

Y

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Software

Operating system installed

QNAP QTS

Operating system version

5.2.6

Ports & interfaces

USB port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Ethernet LAN (RJ-45) ports

4

Power

Power supply unit (PSU) capacity

550 W

Number of power supply units

2

AC input voltage

100 - 240 V

Power supply location

Built-in

Redundant power supply (RPS) support

Yes

Weight & dimensions

Width

482.2 mm

Depth

550.8 mm

Height

131.3 mm

Weight

15.6 kg

Package weight

22.1 kg

Package width

567 mm

Package depth

724 mm

Package height

313 mm

Technical details

Warranty period

5 year(s)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Packaging content

Cables included

AC, LAN (RJ-45)

Number of screws

128

Drive tray key included

Yes

Package type

Box
