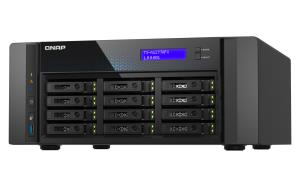

NAS - TS-H1277AFX-R7-32G - 12x 2.5in SATA 6Gb/s - AMD Ryzen 7 9000 Series 8C/16T 3.8 GHz - 5.5 GHz 32GB UDIMM DDR5 ECC

Introduction

TS-h1277AFX
High-performance all-flash NAS – Optimizing collaboration and productivity for creatives, with unmatched affordability.

Powered by AMD Ryzen™ 7 9000 Series processors, the 12-bay SATA all-flash NAS TS-h1277AFX redefines performance and expandability, delivering an ideal storage solution tailored for multimedia creators. Coupled with the ZFS-based QuTS hero operating system, it ensures unmatched data integrity, system reliability, and advanced SSD optimization. The TS-h1277AFX supports 2.5/10/25GbE high-speed connectivity, making it an ideal companion for low-latency 4K/8K video editing, visual effects (VFX) workflows, team collaboration, and large file transfers – empowering creators to focus entirely on their craft without worrying technical barriers.

Storage

Supported storage drive interfaces

Serial ATA, Serial ATA II, Serial ATA III

Storage drive sizes supported

2.5"

Number of system drives supported

12

System drive capacity

4 GB

RAID support

Yes

RAID levels

0, 1, 5, 6, 10, 50, 60

Online RAID expansion

Yes

RAID rebuild

Yes

Hot-swap drive bays

Yes

Supported file systems

FAT32, HFS+, NTFS, exFAT, ext3, ext4

Storage drives installed

No

Total installed storage capacity

0 TB

Number of storage drives supported

12

Installed storage drive type

No

Supported storage drive types

HDD & SSD

Bad block scan

Yes

Disk roaming

Yes

Processor

Processor manufacturer

AMD

Processor generation

AMD Ryzen 9000 Series

Processor family

AMD Ryzen™ 7

Processor frequency

3.8 GHz

Processor boost frequency

5.5 GHz

Processor cores

8

Processor threads

16

Memory

Internal memory

32 GB

Internal memory type

DDR5

Maximum RAM supported

192 GB

Memory slots

4

Memory form factor

UDIMM

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Ethernet LAN data rate supported (max)

10000 Mbit/s

DHCP server

Yes

iSCSI support

Yes

Dynamic DNS (DDNS)

Yes

Ports & interfaces

USB port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI ports quantity

1

HDMI version

1.4b

Ethernet LAN (RJ-45) ports

4

Design

Chassis type

Tower

Cooling type

Active

Product colour

Black

Number of fans

2 fan(s)

Fan diameter

9.2 cm

Fan diameter 2

9.2 cm

LED indicators

Yes

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Noise level

69.01 dB

Snapshot

Yes

Reset button

Yes

On/off switch

Yes

Built-in FTP server

Yes

System log

Yes

Hot spare

Yes

Disk scan

Yes

S.M.A.R.T. support

Yes

Software

Operating system installed

QuTS hero

Operating system version

5.2.3

Power

Power supply unit (PSU) capacity

500 W

AC input voltage

100 - 240 V

Weight & dimensions

Width

368 mm

Depth

362 mm

Height

157.2 mm

Weight

8 kg

Package width

494 mm

Package depth

258 mm

Package height

525 mm

Package weight

8.9 kg

Packaging content

Cables included

AC

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

-20 - 70 °C
