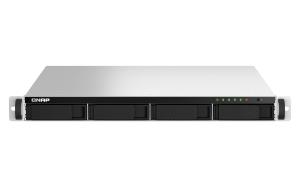

TS-464U-8G 1U 4bay 8GB 2X 2.5GbE (2.5G/1G/100M/10M)

Storage

Supported storage drive interfaces

Serial ATA II, Serial ATA III

Storage drive sizes supported

2.5,3.5"

RAID support

Y

RAID levels

0, 1, 5, 6, 10, JBOD

Online RAID migration

Y

Online RAID expansion

Y

RAID rebuild

Y

Hot-swap drive bays

Y

Supported file systems

FAT32, HFS+, NTFS, exFAT, ext3, ext4

Storage drives installed

N

Number of storage drives supported

4

Installed storage drive type

N

Supported storage drive types

HDD & SSD

Disk roaming

Y

Storage drive capacity

0 GB

Total installed storage capacity

0 TB

Processor

Processor manufacturer

Intel

Processor family

Intel® Celeron®

Processor boost frequency

2.9 GHz

Processor cores

4

Processor threads

4

On-board graphics card model

Intel® UHD Graphics

Processor model

N5095

CPU configuration (max)

1

Processor frequency

2 GHz

Memory

Maximum RAM supported

8 GB

Internal memory

8 GB

Flash memory

4000 MB

Internal memory type

DDR4

Memory slots

2

Memory form factor

SO-DIMM

Network

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

DHCP client

Y

DHCP server

Y

Jumbo frames support

Y

iSCSI support

Y

Wake-on-LAN ready

Y

Dynamic DNS (DDNS)

Y

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T

Ports & interfaces

USB port

Y

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

1.4b

Ethernet LAN (RJ-45) ports

2

Concurrent connections

1500

PCI Express x2 (Gen 3.x) slots

1

Design

Chassis type

Rack (1U)

Cooling type

Active

Product colour

Black

Number of fans

2 fan(s)

Fan diameter

4 cm

LED indicators

HDD, LAN, Power, Status

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Y

Backup features

Cloud, iSCSI LUN

Buzzer

Y

Multilingual support

Y

Snapshot

Y

Security algorithms

256-bit AES, FIPS 140-2, HTTPS, SSH

Access Control List (ACL)

Y

Reset button

Y

On/off switch

Y

Built-in FTP server

Y

Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

System log

Y

Hot spare

Y

Disk scan

Y

S.M.A.R.T. support

Y

Share folder

CIFS/SMB

Management protocols

SNMP V2, V3

Software

Operating system installed

QNAP Turbo System

Operating system version

5.0.0

Windows operating systems supported

Windows 10, Windows 11, Windows 7, Windows 8

Linux operating systems supported

Y

Mac operating systems supported

Y

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Other operating systems supported

Solaris 10

Power

Power supply location

Built-in

Power supply unit (PSU) capacity

250 W

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Fan voltage

12 V

Power consumption (typical)

36.81 W

Power consumption (sleep)

22.285 W

Weight & dimensions

Width

482.6 mm

Depth

483.9 mm

Height

43.3 mm

Weight

6.6 kg

Package weight

8.54 kg

Package width

667 mm

Package depth

612 mm

Package height

160 mm

Technical details

Harmonized System (HS) code

84714100

Packaging content

Cables included

AC, LAN (RJ-45)

Power cables quantity

1

Number of screws

84

Package type

Box

Quick start guide

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

-20 - 70 °C

Other features

Warranty period

3 year(s)

Processor special features

Enhanced Intel SpeedStep Technology

Yes

Idle States

Yes

Intel 64

Yes

Intel Trusted Execution Technology

No

Intel Virtualization Technology (VT-x)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes
